796404-1

Obsolete

TE Connectivity AMP Connectors

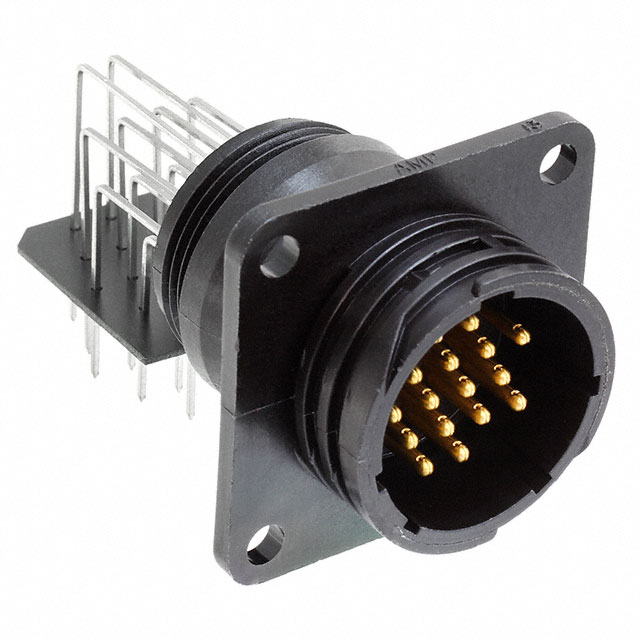

CONN RCPT MALE 16POS GOLD SOLDER

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN RCPT MALE 16POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	796404-1

Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Brass
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	16
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	A
Primary Material	Plastic
Shell Size - Insert [Max]	16
Shell Size - Insert [Min]	17
Termination	Solder
Voltage Rating	250 VAC

CONN RCPT MALE 16POS GOLD SOLDER

Part	Voltage Rating	Connector Type	Contact Finish - Mating	Number of Positions	Material Flammability Rating	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Feature	Primary Material	Termination	Contact Material	Mounting Type	Orientation	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 796404-1	250 VAC	Male Pins, Receptacle	Gold	16	UL94 V-0	17	16	30 Áin	0.76 Ám	Flange	Plastic	Solder	Brass	Panel Mount, Right Angle, Through Hole	A	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

16 Position Circular Connector Receptacle, Male Pins Solder
