Description
General part information

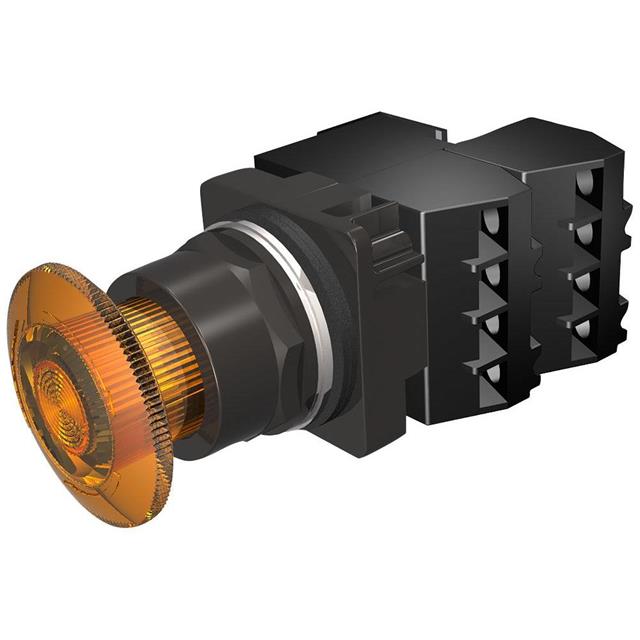

52BR8ETGB
Pushbutton Switch DPST-NC Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 52BR8ETGB |
|---|---|
| Actuator Type | Button, Round, Mushroom |
| Circuit | DPST-NC |
| Color | Amber |
| Color - Actuator/Cap | Amber |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 120 V |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off |
| Termination Style | Screw Terminal |
| Type | Standard, Illuminated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
