PA4300.334NLT
ActivePulse Electronics
FIXED IND 330UH 230MA 2.21OHM SM
PA4300.334NLT
ActivePulse Electronics
FIXED IND 330UH 230MA 2.21OHM SM
Description
General part information
PA4300.334NLT

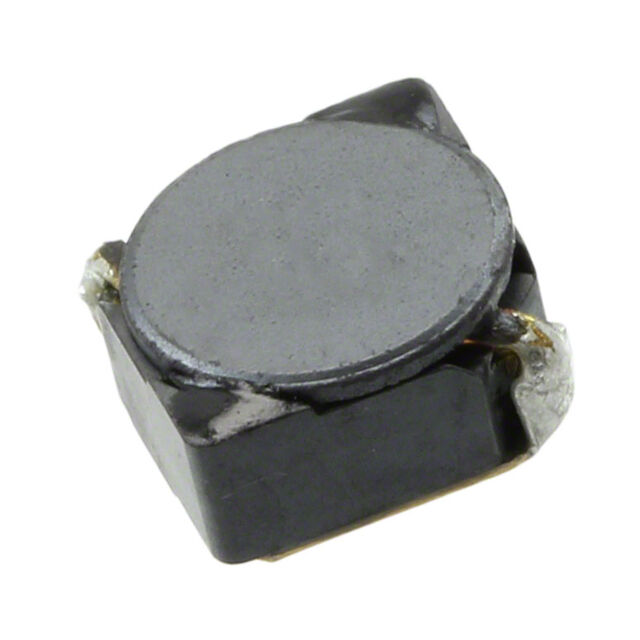

330 µH Shielded Drum Core, Wirewound Inductor 230 mA 2.21Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4300.334NLT |
|---|---|
| Current Rating | 0.23 A |
| DC Resistance (DCR) (Max) | 2.21 Ohm |
| Height - Seated (Max) | 0.118 in |
| Inductance | 330 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.24 in |
| Size / Dimension Width | 0.24 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
