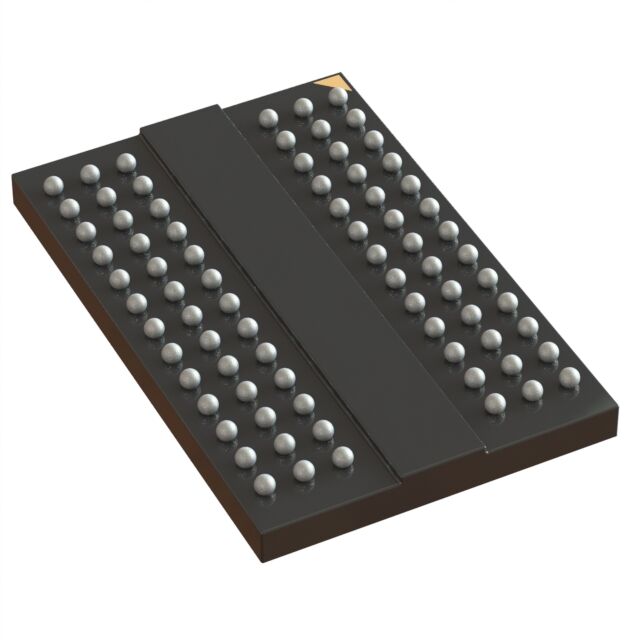

AS4C512M8D3LC-12BANTR
ActiveAlliance Memory, Inc.
IC DRAM 4GBIT PARALLEL 78FBGA
Deep-Dive with AI
Search across all available documentation for this part.
AS4C512M8D3LC-12BANTR
ActiveAlliance Memory, Inc.
IC DRAM 4GBIT PARALLEL 78FBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AS4C512M8D3LC-12BANTR |
|---|---|
| Access Time | 20 ns |
| Clock Frequency | 800 MHz |
| Memory Format | DRAM |
| Memory Interface | Parallel |
| Memory Organization | 512 M |
| Memory Size | 512 kb |
| Memory Type | Volatile |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Supplier Device Package | 78-FBGA |
| Supplier Device Package [x] | 7.5 |
| Supplier Device Package [y] | 10.6 |
| Technology | SDRAM - DDR3L |
| Voltage - Supply [Max] | 1.45 V |
| Voltage - Supply [Min] | 1.283 V |
| Write Cycle Time - Word, Page | 15 ns |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 10.45 | |
Description
General part information
AS4C512M8D3LC-12BANTR
SDRAM - DDR3L Memory IC 4Gbit Parallel 800 MHz 20 ns 78-FBGA (7.5x10.6)
Documents
Technical documentation and resources
No documents available
