CDTA30R1W

Active

ChromeLED

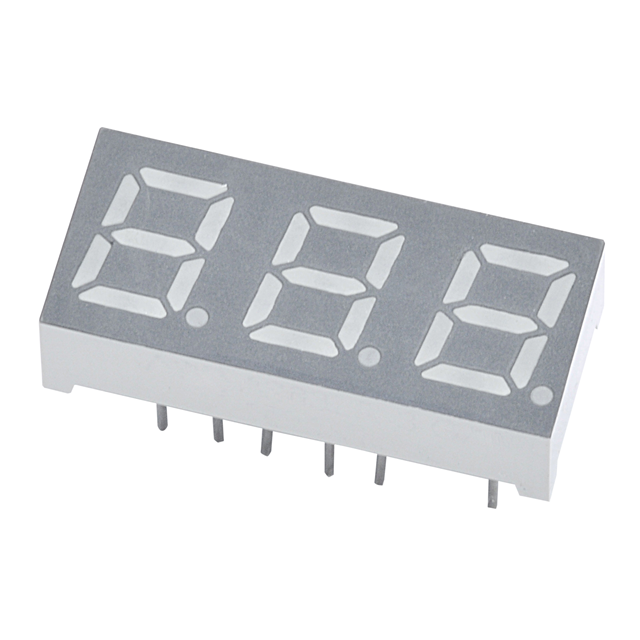

DISPLAY 7SEG 0.30" TRI RED 12DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDTA30R1W

Active

ChromeLED

DISPLAY 7SEG 0.30" TRI RED 12DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDTA30R1W

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	0.3 in
Digit/Alpha Size	7.62 mm
Display Type	7-Segment
Millicandela Rating	2 mcd
Number of Characters	3
Package / Case	12-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	14 mm
Size / Dimension [x]	0.55 in
Size / Dimension [y]	0.866 in
Size / Dimension [y]	22 mm
Size / Dimension [z]	7.2 mm
Size / Dimension [z]	0.283 in
Voltage - Forward (Vf) (Typ)	2 V

CDTA30 Series

DISPLAY 7SEG 0.30" TRI RED 12DIP

Part	Number of Characters	Color	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Common Pin	Current - Test	Millicandela Rating	Display Type	Package / Case	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size
ChromeLED CDTA30R1W	3	Red	0.866 in	7.2 mm	22 mm	14 mm	0.55 in	0.283 in	Common Anode	10 mA	2 mcd	7-Segment	12-DIP	75 mw	2 V	0.3 in	7.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.50

Description

General part information

CDTA30 Series

Display Modules - LED Character and Numeric Red 7-Segment 3 Character Common Anode 2V 10mA 0.550" H x 0.866" W x 0.283" D (14.00mm x 22.00mm x 7.20mm) 12-DIP
