289-549
ActiveTERMINAL BLOCK INTERFACE, D SUB 50 POSITION PLUG, CAGE CLAMP TERMINAL BLOCK, 2 A, 125 V
289-549
ActiveTERMINAL BLOCK INTERFACE, D SUB 50 POSITION PLUG, CAGE CLAMP TERMINAL BLOCK, 2 A, 125 V
Description
General part information
289-549

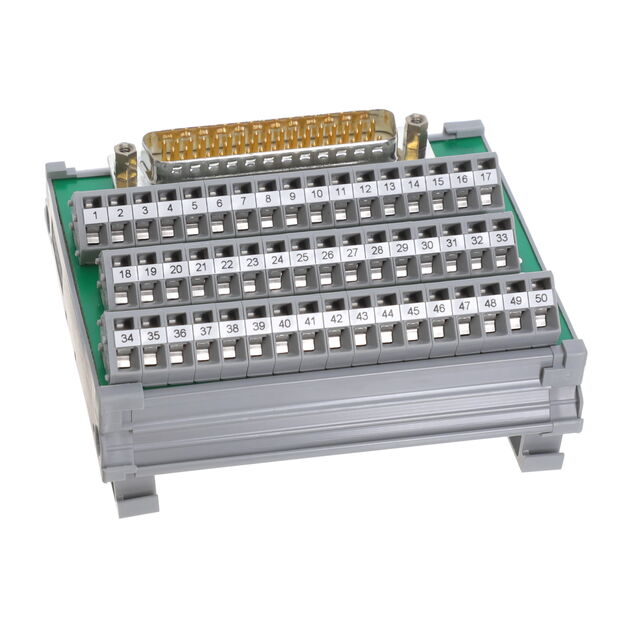

The 289-549 is a 50-position DIN 35 rail-mount Interface Module with Au over Ni connector contact. It features with D-subminiature male connector and CAGE CLAMP® connection technology. It is suitable for use with the mating connectors with solder connection.
Technical Specifications
Parameters and characteristics for this part
| Specification | 289-549 |
|---|---|
| Control Side Cable Retainer Type | Jackscrew Socket |
| Control Side Connection Gender | Male |
| Control Side Connection Shape | D-Sub |
| Current Rating (Per Contact) | 2 A |
| Length | 1.339 in |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Positions / Poles | 50 |
| Process Side Connection | Terminal Blocks, Screw Connection |
| Voltage - Rated | 125 VAC |
| Width | 3.701 in |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
