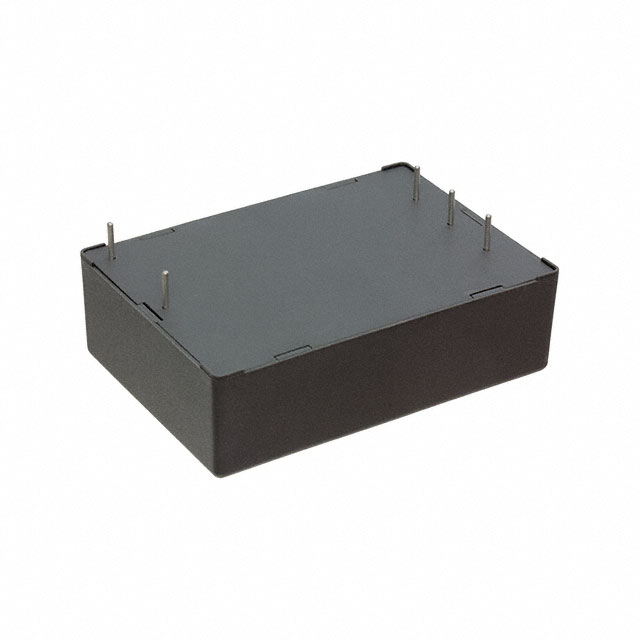

TMP 10212
ObsoleteTraco Power
AC/DC CONVERTER +/-12V 9.1W
TMP 10212
ObsoleteTraco Power
AC/DC CONVERTER +/-12V 9.1W
Description
General part information
TMP 10212
Enclosed AC DC Converters 2 Output 12V 380mA, 380mA 85 ~ 264 VAC, 120 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | TMP 10212 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus, cULus, CB |
| Current - Output (Max) | 380 mA |
| Efficiency | 77 % |
| Features | Universal Input, SCP, OTP |
| Line Regulation (Max) | 3 % |
| Line Regulation (Min) | 1 % |
| Load Regulation (Percent) | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 9.1 W |
| Size / Dimension Height | 0.76 in |
| Size / Dimension Length | 2.52 in |
| Size / Dimension Width | 1.77 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Output 1 | 12 V |
