Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STEVAL-IFP001V1 | VN808 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Current - Output (Max) | - | 1 - 700 A |
| Embedded | False | False |
| Fault Protection | - | Over Temperature, Current Limiting (Fixed) |
| Features | - | Status Flag, Auto Restart |
| Function | High Side Driver (Internal FET) | High Side Driver (Internal FET) |
| Input Type | - | Non-Inverting |
| Interface | - | On/Off |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 8 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | High Side |
| Output Type | - | N-Channel |
| Package / Case | - | 36-PowerBSSOP |
| Primary Attributes | 8-Channel (Octal) | 8-Channel (Octal) |
| Ratio - Input:Output | - | 1:1 |
| Rds On (Typ) | - | 150 - 160 mOhm |
| Secondary Attributes | Thermal, Short-Circuit, Undervoltage Protection | Thermal, Short-Circuit, Undervoltage Protection |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | PowerSO-36, Bottom Pad |
| Switch Type | - | General Purpose |
| Type | Power Management | Power Management |
| Utilized IC / Part | VN808 | VN808 |
| Voltage - Load | - | 45 V |
| Voltage - Load | - | 10.5 V |
| Voltage - Supply (Vcc/Vdd) | - | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.00 | |
VN808 Series
Octal channel high side driver
| Part | Voltage - Load [Max] | Voltage - Load [Min] | Output Type | Package / Case | Output Configuration | Input Type | Ratio - Input:Output [custom] | Rds On (Typ) | Fault Protection | Supplier Device Package | Interface | Operating Temperature [Min] | Operating Temperature [Max] | Switch Type | Current - Output (Max) [Max] | Mounting Type | Number of Outputs | Voltage - Supply (Vcc/Vdd) | Features | Primary Attributes | Embedded | Utilized IC / Part | Supplied Contents | Function | Type | Contents | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VN808-E | |||||||||||||||||||||||||||
STMicroelectronics VN808CMTR-32-E | 45 V | 10.5 V | N-Channel | 36-PowerBSSOP | High Side | Non-Inverting | 1:1 | 160 mOhm | Current Limiting (Fixed), Over Temperature | PowerSO-36, Bottom Pad | On/Off | -40 °C | 125 ¯C | General Purpose | 1 A | Surface Mount | 8 | Auto Restart, Status Flag | |||||||||
STMicroelectronics VN808-E | |||||||||||||||||||||||||||

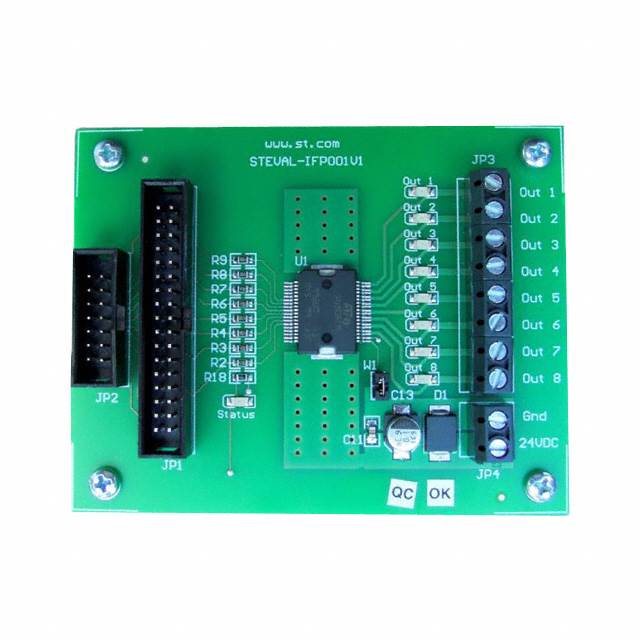

STMicroelectronics STEVAL-IFP001V1 | 8-Channel (Octal) | VN808 | Board(s) | High Side Driver (Internal FET) | Power Management | Board(s) | Short-Circuit, Thermal, Undervoltage Protection | ||||||||||||||||||||
STMicroelectronics VN808-E | 45 V | 10.5 V | N-Channel | 36-PowerBSSOP | High Side | Non-Inverting | 1:1 | 150 mOhm | Current Limiting (Fixed), Over Temperature | PowerSO-36, Bottom Pad | On/Off | -40 °C | 125 ¯C | General Purpose | 700 mA | Surface Mount | 8 | Auto Restart, Status Flag | |||||||||
STMicroelectronics VN808CMTR-32-E | |||||||||||||||||||||||||||
STMicroelectronics VN808-E | |||||||||||||||||||||||||||
STMicroelectronics STEVAL-IFP001V1 | |||||||||||||||||||||||||||
STMicroelectronics VN808CMTR-32-E | |||||||||||||||||||||||||||
STMicroelectronics VN808-E |
Description
General part information
VN808 Series
The VN808CM-E and VN808CM-32-E are monolithic devices designed with STMicroelectronics VIPower M0-3 technology, intended to drive any kind of load with one side connected to ground. It can be driven by using a 3.3 V logic supply.
Active current limitation combined with thermal shutdown and automatic restart protect the device against overload. In overload conditions, the channel turns OFF and ON again automatically to maintain the junction temperature between TJSDand TR. If this condition causes the case temperature to trigger TCSD, then overloaded channels are turned OFF and can be turned back ON only when the case temperature decreases down to TCR.
Non- overloaded channels continue to operate normally. The device automatically turns OFF in case of ground pin disconnection. This device is especially suitable for industrial applications conforming to IEC 61131.
