33-2920-00-5000

Active

Calian

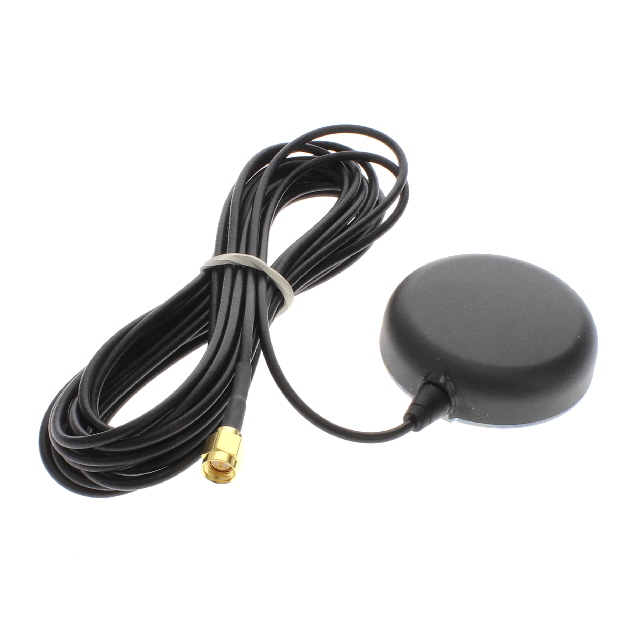

RF ANT 1.56GHZ PUCK 5M CABLE

Search across all available documentation for this part.

Active

Calian

RF ANT 1.56GHZ PUCK 5M CABLE

Technical Specifications

Parameters and characteristics for this part

RF ANT 1.56GHZ PUCK 5M CABLE

Part	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Applications	Number of Bands	Features	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	Gain	Frequency (Center/Band)	Termination	Ingress Protection	VSWR
Calian 33-2920-00-5000	2 GHz	1 GHz	UHF	Beidou, Galileo, GLONASS, GPS	1	Cable - 5m, Filter, LNA	15 mm	0.591 in	Magnetic	1.61 GHz	1.51 GHz	Navigation	32 dB	1.56 GHz	Connector	IP67	1.8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 119.18

General part information

RF ANTENNA Beidou, Galileo, GLONASS, GPS Puck Connector Magnetic

Technical documentation and resources
