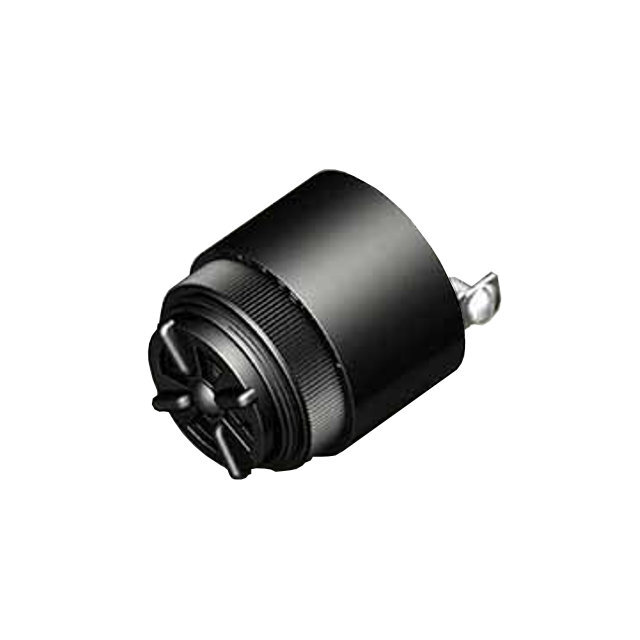

CH-V09-301-S(M)

Active

Floyd Bell Inc

BUZZER PIEZO 220V 35.8MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER PIEZO 220V 35.8MM PNL MNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.58

General part information

Buzzers Indicator, Internally Driven Piezo 220 V 40mA 2.9kHz 93dB @ 220V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	CH-V09-301-S(M)	CH-V09-301 Series

Approval Agency	UR, UL	UR, UL
Current - Supply	40 mA	40 mA
Driver Circuitry	Internally Driven, Indicator	Internally Driven, Indicator
Frequency	2.9 kHz	2.9 kHz
Height - Seated (Max) [Max] [z]	1.48 "	1.48 - 1.53 "
Height - Seated (Max) [Max] [z]	37.59 mm	37.59 - 38.86 mm
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Input Type	AC	AC
Operating Mode	Chime	Chime
Port Location	Top	Top
Size / Dimension [diameter]	1.409 in	1.409 - 1.41 in
Size / Dimension [diameter]	35.8 mm	35.8 - 35.81 mm
Sound Pressure Level (SPL)	93 dB	93 dB
Technology	Piezo	Piezo
Termination	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	Quick Connect Tab - 0.250" (6.35mm), Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Wire Leads
Voltage - Rated	220 V	220 V

BUZZER PIEZO 220V 35.81MM PNL MT

Part	Driver Circuitry	Size / Dimension [diameter]	Size / Dimension [diameter]	Technology	Sound Pressure Level (SPL)	Input Type	Approval Agency	Voltage - Rated	Current - Supply	Frequency	Termination	Operating Mode	Ingress Protection	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Port Location
Floyd Bell Inc CH-V09-301-Q(F)	Indicator, Internally Driven	1.41 in	35.81 mm	Piezo	93 dB	AC	UL, UR	220 V	40 mA	2.9 kHz	Quick Connect Tab - 0.250" (6.35mm)	Chime	IP68 - Dust Tight, Waterproof	1.48 "	37.59 mm	Top
Floyd Bell Inc CH-V09-301-S(F)	Indicator, Internally Driven	1.41 in	35.81 mm	Piezo	93 dB	AC	UL, UR	220 V	40 mA	2.9 kHz	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	Chime	IP68 - Dust Tight, Waterproof	1.48 "	37.59 mm	Top
Floyd Bell Inc CH-V09-301-W(M)		1.41 in	35.81 mm	Piezo	93 dB	AC		220 V	40 mA	2.9 kHz	Wire Leads	Chime		1.53 in	38.86 mm	Top
Floyd Bell Inc CH-V09-301-Q(M)	Indicator, Internally Driven	1.409 in	35.8 mm	Piezo	93 dB	AC	UL, UR	220 V	40 mA	2.9 kHz	Quick Connect Tab - 0.250" (6.35mm)	Chime	IP68 - Dust Tight, Waterproof	1.48 "	37.59 mm	Top
Floyd Bell Inc CH-V09-301-W(F)		1.41 in	35.81 mm	Piezo	93 dB	AC		220 V	40 mA	2.9 kHz	Wire Leads	Chime		1.53 in	38.86 mm	Top
Floyd Bell Inc CH-V09-301-S(M)	Indicator, Internally Driven	1.409 in	35.8 mm	Piezo	93 dB	AC	UL, UR	220 V	40 mA	2.9 kHz	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	Chime	IP68 - Dust Tight, Waterproof	1.48 "	37.59 mm	Top
