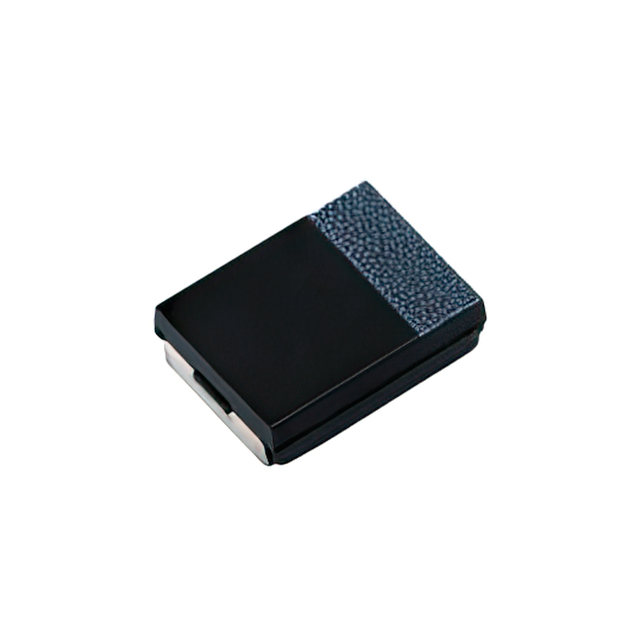

T51V227M2R5C0040

Active

Vishay Polytech

CAP TANT POLY 220UF 2.5V 2917

Search across all available documentation for this part.

Active

Vishay Polytech

CAP TANT POLY 220UF 2.5V 2917

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	T51V227M2R5C0040	T51V Series

Capacitance	220 µF	220 - 330 µF
ESR (Equivalent Series Resistance)	40 mOhm	40 mOhm
Features	Automotive	Automotive
Height - Seated (Max) [Max] [z]	2 mm	2 mm
Height - Seated (Max) [Max] [z]	0.079 in	0.079 in
Lifetime @ Temp.	2000 Hrs	2000 Hrs
Manufacturer Size Code	V	V
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	7343 Metric	7343 Metric
Package / Case	2917	2917
Ratings	AEC-Q200	AEC-Q200
Size / Dimension [x]	0.287 "	0.287 "
Size / Dimension [x]	7.3 mm	7.3 mm
Size / Dimension [y]	4.3 mm	4.3 mm
Size / Dimension [y]	0.169 "	0.169 "
Tolerance	20 %	20 %
Type	Molded	Molded
Voltage - Rated	2.5 V	2.5 V

CAP TANT POLY 330UF 2.5V 2917

Part	Mounting Type	Package / Case	Package / Case	Lifetime @ Temp.	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Ratings	Manufacturer Size Code	Tolerance	Type	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated
Vishay Polytech T51V337M2R5C0040	Surface Mount	7343 Metric	2917	2000 Hrs	330 µF	2 mm	0.079 in	Automotive	AEC-Q200	V	20 %	Molded	40 mOhm	-55 °C	125 °C	4.3 mm	0.287 "	7.3 mm	0.169 "	2.5 V
Vishay Polytech T51V227M2R5C0040	Surface Mount	7343 Metric	2917	2000 Hrs	220 µF	2 mm	0.079 in	Automotive	AEC-Q200	V	20 %	Molded	40 mOhm	-55 °C	125 °C	4.3 mm	0.287 "	7.3 mm	0.169 "	2.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 µF Molded Tantalum Polymer Capacitor 2.5 V 2917 (7343 Metric) 40mOhm @ 100kHz
