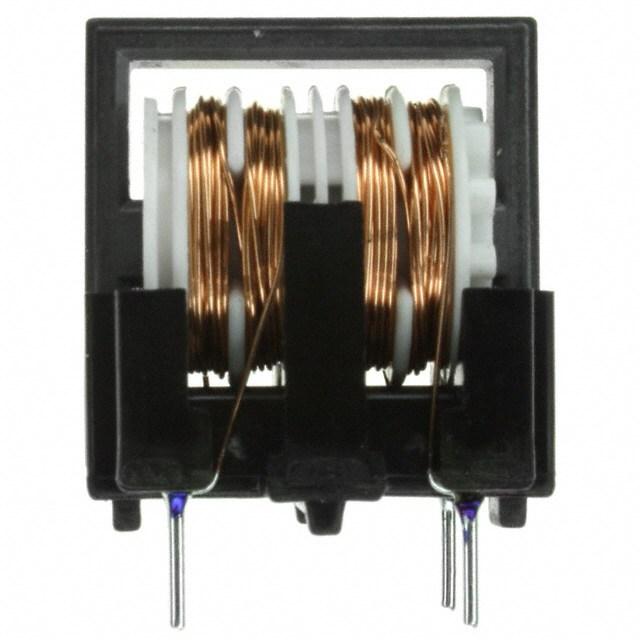

EV20-0.5-02-18M

Active

TE Connectivity Raychem Cable Protection

CMC 18MH 500MA 2LN TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CMC 18MH 500MA 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	EV20-0.5-02-18M

Current Rating (Max) [Max]	500 mA
DC Resistance (DCR) (Max)	725 mOhm
Filter Type	Power Line
Height (Max)	26 mm
Height (Max) [Max] [z]	1.024 in
Inductance @ Frequency	400 Hz, 18 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension [x]	21 mm
Size / Dimension [x]	0.827 in
Size / Dimension [y]	16 mm
Size / Dimension [y]	0.63 in
Voltage Rating - AC	250 V

Part	Filter Type	Mounting Type	Voltage Rating - AC	Height (Max)	Height (Max) [Max] [z]	DC Resistance (DCR) (Max)	Current Rating (Max) [Max]	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance @ Frequency	Number of Lines	Operating Temperature [custom]
TE Connectivity Raychem Cable Protection EV20-0.5-02-18M	Power Line	Through Hole	250 V	26 mm	1.024 in	725 mOhm	500 mA	4 Lead	Vertical	16 mm	21 mm	0.63 in	0.827 in	18 mH 400 Hz	2	-25 °C 100 °C
TE Connectivity Raychem Cable Protection EV20-0.8-02-5M6	Power Line	Through Hole	250 V	26 mm	1.024 in	245 mOhm	800 mA	4 Lead	Vertical	16 mm	21 mm	0.63 in	0.827 in	5.6 mH	2	-25 °C 100 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 500mA DCR 725mOhm (Typ)
