Description
General part information

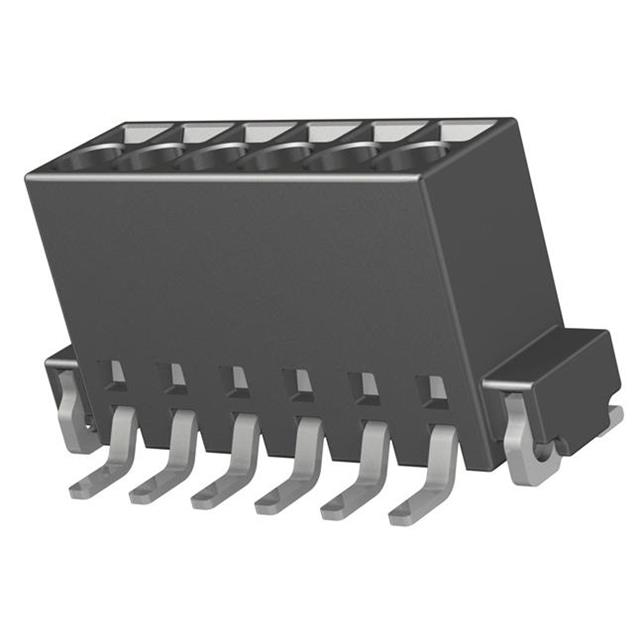

14010613101333
6 Position Wire to Board Terminal Block Vertical with Board 0.100" (2.54mm) Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 14010613101333 |
|---|---|
| Color | Black |
| Contact Material | Copper Alloy |
| Current | 6 A |
| Features | Solder Retention |
| Housing Material | Liquid Crystal Polymer, LCP |
| Mating Orientation | Vertical with Board |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
| Plating | Tin Plated |
| Positions Per Level | 6 |
| Voltage | 160 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
