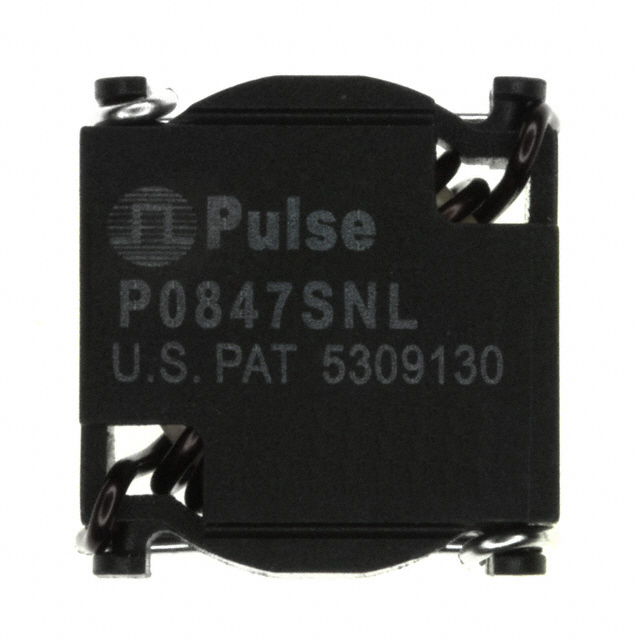

P0847SNL
ActivePulse Electronics
FIXED IND 10UH 5A 25 MOHM SMD
P0847SNL
ActivePulse Electronics
FIXED IND 10UH 5A 25 MOHM SMD
Description
General part information
P0847SNL
10 µH Shielded Toroidal Inductor 5 A 25mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | P0847SNL |
|---|---|
| Current Rating | 5 A |
| DC Resistance (DCR) | 25 mOhm |
| Height - Seated (Max) | 0.39 in |
| Inductance | 10 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.7 in |
| Size / Dimension Width | 0.67 in |
| Tolerance | 20 % |
| Type | Toroidal |
