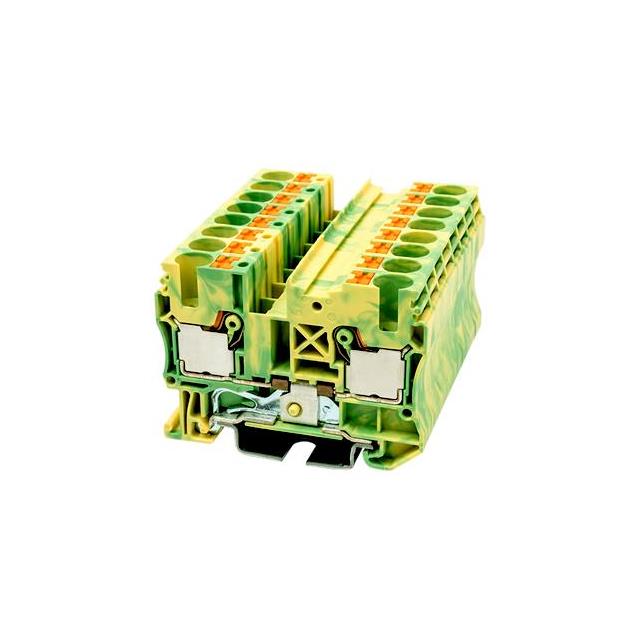

DP6-WE
ActiveDinkle Corporation, USA
RAIL TERM BLK FEED THRU 8-20AWG
DP6-WE
ActiveDinkle Corporation, USA
RAIL TERM BLK FEED THRU 8-20AWG
Description
General part information
DP6-WE
Terminal Block Connector 2 Position Feed Through Beige 8-20 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | DP6-WE |
|---|---|
| Color | Beige |
| Current - IEC | 41 A |
| Current - UL | 40 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 12 mm |
| Terminal Width | 8 mm |
| Termination Style | Push In |
| Type | Feed Through |
| Voltage - IEC | 1000 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 20 AWG |
| Wire Gauge or Range - AWG (Min) | 8 AWG |
| Wire Gauge or Range - mm² (Maximum) | 10 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.5 mm² |
