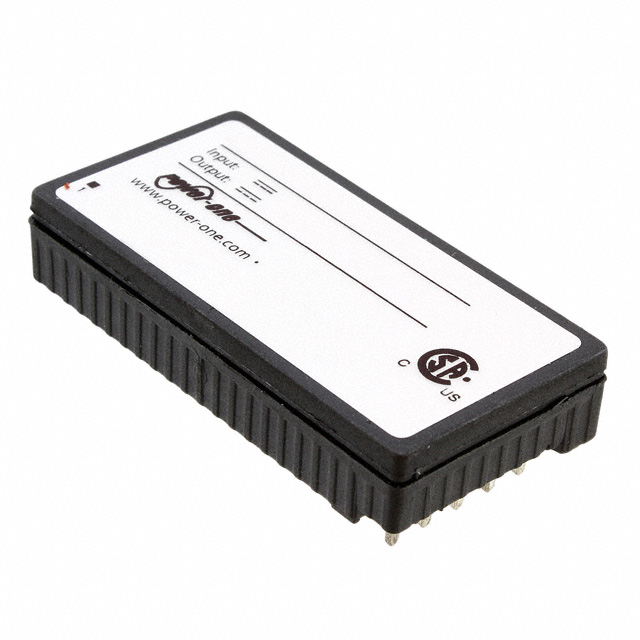

70IMX7-03-8
ActiveBel Power Solutions
DC DC CONVERTER 3.3V 7W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
70IMX7-03-8
ActiveBel Power Solutions
DC DC CONVERTER 3.3V 7W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 70IMX7-03-8 | 70IMX7 Series |
|---|---|---|
| Applications | Railway, ITE (Commercial) | Railway, ITE (Commercial) |
| Current - Output (Max) | - | 240 mA |
| Current - Output (Max) | - | 300 - 700 mA |
| Current - Output (Max) | - | 150 - 700 mA |
| Current - Output (Max) | - | 150 mA |
| Current - Output (Max) [Max] | 1.5 A | 1.2 - 240 A |
| Efficiency | 78 % | 78 - 85 % |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP | OCP, UVLO, OTP, Remote On/Off, SCP, OVP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 - 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 14-DIP Module, 9 Leads | 14-DIP Module, 9 Leads |
| Power (Watts) | 7 W | 7 - 7.2 W |
| Size / Dimension [x] | 2 in | 2 in |
| Size / Dimension [x] | 50.8 mm | 50.8 mm |
| Size / Dimension [y] | 25.4 mm | 25.4 mm |
| Size / Dimension [y] | 25.4 mm | 25.4 mm |
| Size / Dimension [z] | 10.5 mm | 10.5 mm |
| Size / Dimension [z] | 0.41 " | 0.41 - 0.42 " |
| Type | Isolated Module, Conformal Coated | Isolated Module, Conformal Coated |
| Voltage - Input (Max) [Max] | 121 V | 121 V |
| Voltage - Input (Min) [Min] | 40 V | 40 V |
| Voltage - Isolation | 2000 V | 2.1 - 2000 V |
| Voltage - Output 1 | 3.3 V | 3.3 - 24 V |
| Voltage - Output 2 | - | 5 - 24 V |
70IMX7 Series
DC DC CONVERTER 3.3V 7W
| Part | Power (Watts) | Number of Outputs | Efficiency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Output 1 | Applications | Type | Features | Voltage - Isolation | Voltage - Output 2 | Current - Output (Max) [Max] | Current - Output (Max) | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bel Power Solutions 70IMX7-03-8 | 7 W | 1 | 78 % | 2 in | 10.5 mm | 25.4 mm | 50.8 mm | 0.41 " | 25.4 mm | 40 V | 1.5 A | 14-DIP Module, 9 Leads | 85 °C | -40 °C | 121 V | Through Hole | 3.3 V | ITE (Commercial), Railway | Conformal Coated, Isolated Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 2000 V | |||||
Bel Power Solutions 70IMX7-15-15-8G | 7 W | 2 | 83 % | 2 in | 10.5 mm | 25.4 mm | 50.8 mm | 0.42 in | 25.4 mm | 40 V | 240 mA | 14-DIP Module, 9 Leads | 85 °C | -40 °C | 121 V | Through Hole | 15 V | ITE (Commercial), Railway | Conformal Coated, Isolated Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 2000 V | 15 V | 240 mA | |||
Bel Power Solutions 70IMX7-05-8G | 7 W | 1 | 78 % | 2 in | 10.5 mm | 25.4 mm | 50.8 mm | 0.42 in | 25.4 mm | 40 V | 1.2 A | 14-DIP Module, 9 Leads | 85 °C | -40 °C | 121 V | Through Hole | 5.1 V | ITE (Commercial), Railway | Conformal Coated, Isolated Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 2000 V | |||||
Bel Power Solutions 70IMX7-12-12-8G | 7 W | 2 | 85 % | 2 in | 10.5 mm | 25.4 mm | 50.8 mm | 0.41 " | 25.4 mm | 40 V | 14-DIP Module, 9 Leads | 85 °C | -40 °C | 121 V | Through Hole | 12 V | ITE (Commercial), Railway | Conformal Coated, Isolated Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 2000 V | 12 V | 300 mA | ||||
Bel Power Solutions 70IMX7-24-24-8G | 7.2 W | 2 | 83 % | 2 in | 10.5 mm | 25.4 mm | 50.8 mm | 0.41 " | 25.4 mm | 40 V | 14-DIP Module, 9 Leads | 85 °C | -40 °C | 121 V | Through Hole | 24 V | ITE (Commercial), Railway | Conformal Coated, Isolated Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 2.1 kV | 24 V | 150 mA | 150 mA | |||
Bel Power Solutions 70IMX7-05-05-8G | 7 W | 2 | 2 in | 10.5 mm | 25.4 mm | 50.8 mm | 0.41 " | 25.4 mm | 40 V | 14-DIP Module, 9 Leads | 85 °C | -40 °C | 121 V | Through Hole | 5 V | ITE (Commercial), Railway | Conformal Coated, Isolated Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 2.1 kV | 5 V | 700 mA | 700 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
70IMX7 Series
Isolated Module, Conformal Coated DC DC Converter 1 Output 3.3V 1.5A 40V - 121V Input
