B65651T0400A048
ActiveEPCOS - TDK Electronics
FERRITE CORE P 400NH N48 2PCS
B65651T0400A048
ActiveEPCOS - TDK Electronics
FERRITE CORE P 400NH N48 2PCS
Description
General part information
B65651T0400A048

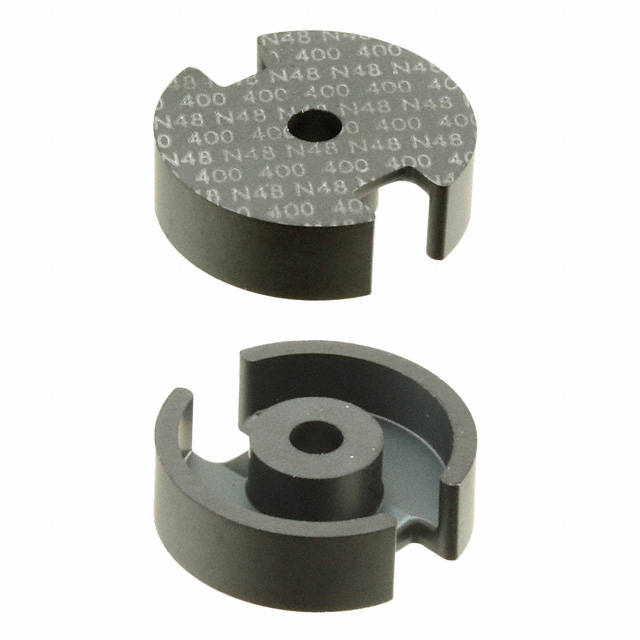

Uncoated N48 Ferrite Core P (Pot Core) Type Length Width 0.724" (18.40mm) Diameter 0.209" (5.30mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | B65651T0400A048 |
|---|---|
| Core Factor (ΣI/A) | 0.6 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 0.6 mm⁻¹ |
| Core Type | P (Pot Core) |
| Diameter | 0.724 in |
| Effective Area (Ae) | 43 mm² |
| Effective Length (le) | 25.9 mm |
| Effective Magnetic Volume (Ve) | 1114 mm³ |
| Effective Permeability (µe) | 192 |
| Finish | Uncoated |
| Gap | Gapped |
| Height | 0.209 in |
| Inductance Factor (Al) | 400 nH |
| Material | N48 |
| Package Length | 18 mm |
| Package Name | P |
| Package Width | 11 mm |
| Tolerance | 3 % |
