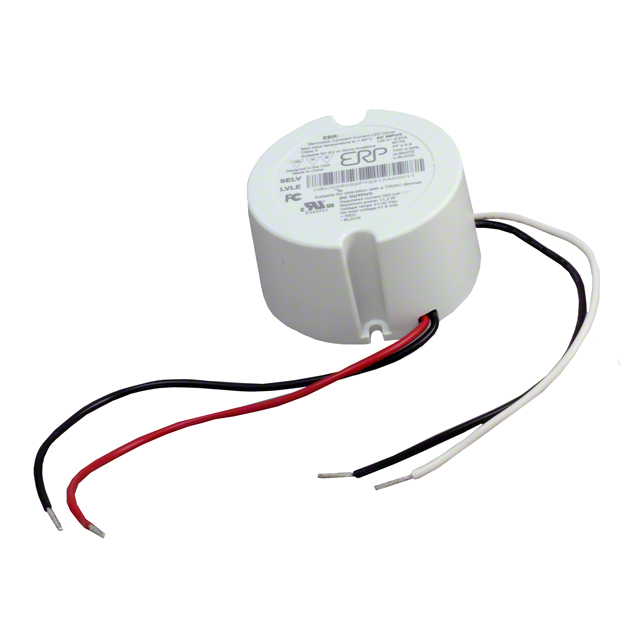

EBR015E-0350-42-CE
ObsoleteERP Power, LLC
LED DRIVER CC AC/DC 30-42V 350MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EBR015E-0350-42-CE
ObsoleteERP Power, LLC
LED DRIVER CC AC/DC 30-42V 350MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EBR015E-0350-42-CE | EBR015 Series |
|---|---|---|
| Approval Agency | CE, cURus | CE, cURus |
| Current - Output (Max) [Max] | 350 mA | 300 - 440 mA |
| Dimming | ELV, TRIAC | ELV, TRIAC |
| Efficiency | 87 % | 87 % |
| Features | OTP, SCP, OCP | OTP, SCP, OCP |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 90 °C | 90 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Power (Watts) | 15 W | 13 - 16 W |
| Ratings | IP20 | IP20 |
| Size / Dimension | 57.9 mm, 31.8 mm | 31.8 - 57.9 mm |
| Size / Dimension [diameter] | 2.28 in | 2.28 in |
| Size / Dimension [z] | 1.25 " | 1.25 " |
| Termination Style | Wire Leads | Wire Leads |
| Topology | AC DC Converter | AC DC Converter |
| Type | Constant Current | Constant Current |
| Voltage - Input (Max) | - | 132 VAC |
| Voltage - Input (Max) [Max] | 240 VAC | 240 VAC |
| Voltage - Input (Min) [Min] | 220 VAC | 90 - 220 VAC |
| Voltage - Output [Max] | 42 V | 36 - 42 V |
| Voltage - Output [Min] | 30 V | 24 - 30 V |
| Weight | 170.5 g | 170.5 g |
| Weight | 0.376 lb | 0.376 lb |
EBR015 Series
LED DRIVER CC AC/DC 24-36V 440MA
| Part | Topology | Termination Style | Voltage - Output [Max] | Voltage - Output [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Type | Weight | Weight | Number of Outputs | Voltage - Input (Max) [Max] [custom] | Dimming | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Features | Mounting Type | Efficiency | Ratings | Power (Watts) | Approval Agency | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [z] | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ERP Power, LLC EBR015U-0440-36 | AC DC Converter | Wire Leads | 36 V | 24 V | -30 ░C | 90 °C | Constant Current | 170.5 g | 0.376 lb | 1 | 132 VAC | ELV, TRIAC | 90 VAC | 440 mA | OCP, OTP, SCP | Chassis Mount | 87 % | IP20 | 16 W | CE, cURus | 2.28 in | 31.8 mm, 57.9 mm | 1.25 " | |
ERP Power, LLC EBR015U-0350-42 | AC DC Converter | Wire Leads | 42 V | 30 V | -30 ░C | 90 °C | Constant Current | 170.5 g | 0.376 lb | 1 | 132 VAC | ELV, TRIAC | 90 VAC | 350 mA | OCP, OTP, SCP | Chassis Mount | 87 % | IP20 | 15 W | CE, cURus | 2.28 in | 31.8 mm, 57.9 mm | 1.25 " | |
ERP Power, LLC EBR015E-0350-42-CE | AC DC Converter | Wire Leads | 42 V | 30 V | -30 ░C | 90 °C | Constant Current | 170.5 g | 0.376 lb | 1 | ELV, TRIAC | 220 VAC | 350 mA | OCP, OTP, SCP | Chassis Mount | 87 % | IP20 | 15 W | CE, cURus | 2.28 in | 31.8 mm, 57.9 mm | 1.25 " | 240 VAC | |
ERP Power, LLC EBR015U-0300-42 | AC DC Converter | Wire Leads | 42 V | 30 V | -30 ░C | 90 °C | Constant Current | 170.5 g | 0.376 lb | 1 | 132 VAC | ELV, TRIAC | 90 VAC | 300 mA | OCP, OTP, SCP | Chassis Mount | 87 % | IP20 | 13 W | CE, cURus | 2.28 in | 31.8 mm, 57.9 mm | 1.25 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EBR015 Series
350mA 30 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output
