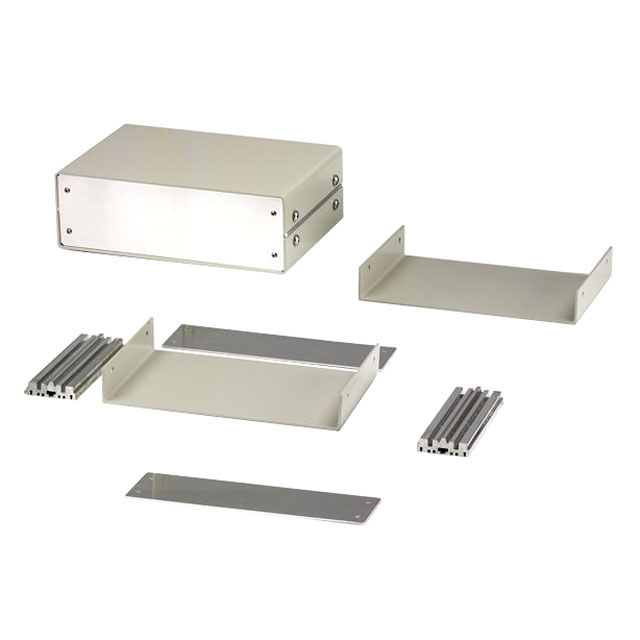

1402KV

Active

Hammond Manufacturing

BOX ALUM GRAY 9.63"L X 10.03"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX ALUM GRAY 9.63"L X 10.03"W

Technical Specifications

Parameters and characteristics commom to parts in this series

BOX ALUM GRAY 9.63"L X 10.03"W

Part	Color	Thickness	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Material	Design	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Container Type	Features
Hammond Manufacturing 1402KV	Gray	12 Gauge	623 cm²	96.6 in²	97.54 mm	3.84 in	Aluminum, Metal	Split Sides and End Panel(s)	9.63 inches	254.76 mm	244.6 mm	10.03 in	Box
Hammond Manufacturing 1402F	Gray	12 Gauge	472 cm²	73.2 in²	78.49 mm	3.09 in	Aluminum, Metal	Split Sides and End Panel(s)	10.26 "	181.1 mm	260.6 mm	7.13 in	Box	Card Guides

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Metal, Aluminum Gray Split Sides and End Panel(s) 9.630" L x 10.030" W (244.60mm x 254.76mm) X 3.840" (97.54mm)
