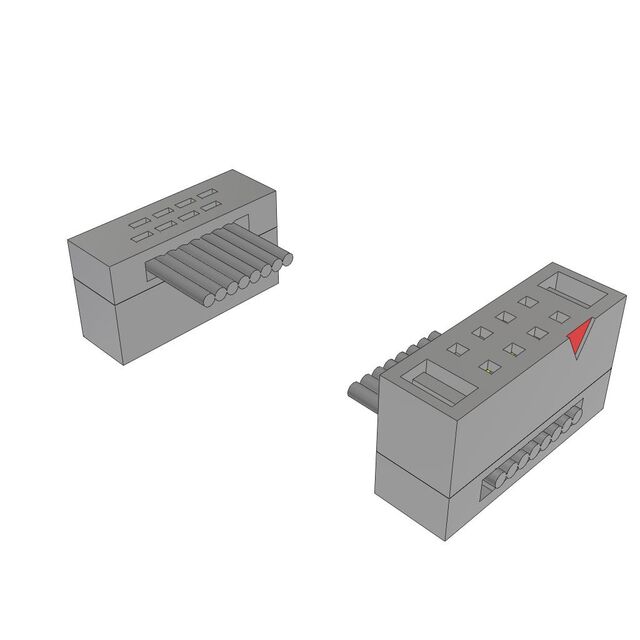

FFTP-04-D-18.00-01-R

Active

Samtec Inc.

.050 X .050 C/L TWISTED PAIR FEM

Search across all available documentation for this part.

Active

Samtec Inc.

.050 X .050 C/L TWISTED PAIR FEM

Technical Specifications

Parameters and characteristics for this part

Part	Length	Length	Length	Number of Rows	Cable Termination	Pitch - Cable [x]	Pitch - Cable	Connector Type	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Shielding	Color	Length [x]	Length [x]
Samtec Inc. FFTP-04-D-03.85-01	3.85 "	0.321 '	97.79 mm	2	IDC	0.025 in	0.64 mm	Socket to Socket	Gold	8	10 Áin	0.25 Ám	0.05 in	1.27 mm	Unshielded	Multiple Twisted Pair (Round)
Samtec Inc. FFTP-04-D-18.00-01				2	IDC	0.025 in	0.64 mm	Socket to Socket	Gold	8	10 Áin	0.25 Ám	0.05 in	1.27 mm	Unshielded	Multiple Twisted Pair (Round)	457.2 mm	1.5 ft
Samtec Inc. FFTP-04-D-18.00-01-R				2	IDC	0.025 in	0.64 mm	Socket to Socket Reversed	Gold	8	10 Áin	0.25 Ám	0.05 in	1.27 mm	Unshielded	Multiple Twisted Pair (Round)	457.2 mm	1.5 ft
Samtec Inc. FFTP-04-D-03.85-01-R	3.85 "	0.321 '	97.79 mm	2	IDC	0.025 in	0.64 mm	Socket to Socket Reversed	Gold	8	10 Áin	0.25 Ám	0.05 in	1.27 mm	Unshielded	Multiple Twisted Pair (Round)
Samtec Inc. FFTP-04-D-08.77-01	8.77 in	0.731 ft	222.76 mm	2	IDC	0.025 in	0.64 mm	Socket to Socket	Gold	8	10 Áin	0.25 Ám	0.05 in	1.27 mm	Unshielded	Multiple Twisted Pair (Round)
Samtec Inc. FFTP-04-D-08.77-01-R	8.77 in	0.731 ft	222.76 mm	2	IDC	0.025 in	0.64 mm	Socket to Socket Reversed	Gold	8	10 Áin	0.25 Ám	0.05 in	1.27 mm	Unshielded	Multiple Twisted Pair (Round)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Cable Assembly Rectangular Socket to Socket, Reversed 1.50' (457.20mm)
