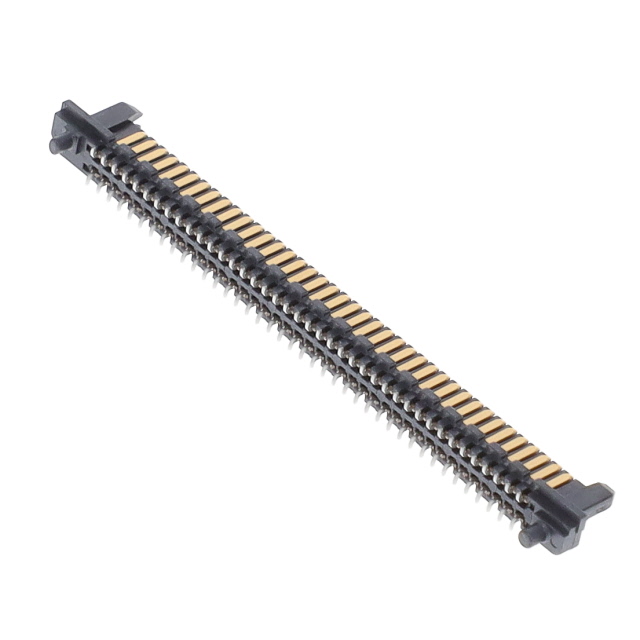

ERM6-40-01.5-L-DV-A-K-TR
ActiveSamtec Inc.
CONN HDR 0.635MM 80POS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ERM6-40-01.5-L-DV-A-K-TR
ActiveSamtec Inc.
CONN HDR 0.635MM 80POS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ERM6-40-01.5-L-DV-A-K-TR |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Pick and Place, Board Guide |
| Height Above Board | 4.78 mm |
| Height Above Board | 0.188 in |
| Mated Stacking Heights | 5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.64 | |
| 10 | $ 7.38 | |||
| 25 | $ 6.66 | |||
| 50 | $ 6.18 | |||
| 100 | $ 5.75 | |||
| 250 | $ 5.24 | |||
| Tape & Reel (TR) | 675 | $ 4.18 | ||
Description
General part information
ERM6-40 Series
80 Position Connector Header, Center Strip Contacts Surface Mount Gold
