146134-3

Obsolete

TE Connectivity Raychem Cable Protection

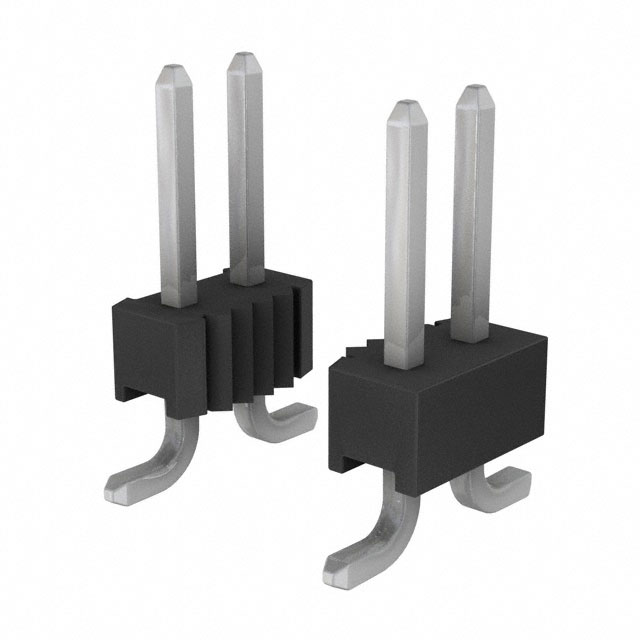

CONN HEADER SMD 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

146134-3

Obsolete

TE Connectivity Raychem Cable Protection

CONN HEADER SMD 8POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	146134-3

Connector Type	Breakaway, Header
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.09 in
Insulation Height	2.29 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	30 VAC

146134 Series

Part	Voltage Rating	Fastening Type	Insulation Height	Insulation Height	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Insulation Color	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating	Style	Contact Finish - Post	Number of Positions Loaded	Contact Type	Number of Positions	Mounting Type	Termination	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Shrouding	Connector Type	Contact Finish - Mating	Number of Positions
TE Connectivity Raychem Cable Protection 6-146134-1	30 VAC	Push-Pull	0.09 in	2.29 mm	Liquid Crystal Polymer (LCP)	125 °C	-65 ░C	Square	Black	0.1 in	2.54 mm	3 A	2	0.23 in	5.84 mm	Board to Board Cable	Tin	All	Male Pin	24	Surface Mount	Solder	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	2.54 çm	100 çin	Copper Alloy	Unshrouded	Breakaway Header
TE Connectivity Raychem Cable Protection 146134-2	30 VAC	Push-Pull	0.09 in	2.29 mm	Liquid Crystal Polymer (LCP)	125 °C	-65 ░C	Square	Black	0.1 in	2.54 mm	3 A	2	0.23 in	5.84 mm	Board to Board Cable	Tin-Lead	All	Male Pin	6	Surface Mount	Solder	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	2.54 çm	100 çin	Copper Alloy	Unshrouded	Breakaway Header	Tin-Lead
TE Connectivity Raychem Cable Protection 6-146134-0	30 VAC	Push-Pull	0.09 in	2.29 mm	Liquid Crystal Polymer (LCP)	125 °C	-65 ░C	Square	Black	0.1 in	2.54 mm	3 A	2	0.23 in	5.84 mm	Board to Board Cable	Tin	All	Male Pin	22 positions	Surface Mount	Solder	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	2.54 çm	100 çin	Copper Alloy	Unshrouded	Breakaway Header
TE Connectivity Raychem Cable Protection 6-146134-3	30 VAC	Push-Pull	0.09 in	2.29 mm	Liquid Crystal Polymer (LCP)	125 °C	-65 ░C	Square	Black	0.1 in	2.54 mm	3 A	2	0.23 in	5.84 mm	Board to Board Cable	Tin	All	Male Pin	28	Surface Mount	Solder	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	2.54 çm	100 çin	Copper Alloy	Unshrouded	Breakaway Header
TE Connectivity Raychem Cable Protection 1-146134-2	30 VAC	Push-Pull	0.09 in	2.29 mm	Liquid Crystal Polymer (LCP)	125 °C	-65 ░C	Square	Black	0.1 in	2.54 mm	3 A	2	0.23 in	5.84 mm	Board to Board Cable	Tin-Lead	All	Male Pin	26	Surface Mount	Solder	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	2.54 çm	100 çin	Copper Alloy	Unshrouded	Breakaway Header	Tin-Lead
TE Connectivity Raychem Cable Protection 146134-3	30 VAC	Push-Pull	0.09 in	2.29 mm	Liquid Crystal Polymer (LCP)	125 °C	-65 ░C	Square	Black	0.1 in	2.54 mm	3 A	2	0.23 in	5.84 mm	Board to Board Cable	Tin-Lead	All	Male Pin	8	Surface Mount	Solder	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	2.54 çm	100 çin	Copper Alloy	Unshrouded	Breakaway Header	Tin-Lead
TE Connectivity Raychem Cable Protection 1-146134-6	30 VAC	Push-Pull	0.09 in	2.29 mm	Liquid Crystal Polymer (LCP)	125 °C	-65 ░C	Square	Black	0.1 in	2.54 mm	3 A	2	0.23 in	5.84 mm	Board to Board Cable	Tin	All	Male Pin	6	Surface Mount	Solder	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	2.54 çm	100 çin	Copper Alloy	Unshrouded	Breakaway Header
TE Connectivity Raychem Cable Protection 1-146134-4	30 VAC	Push-Pull	0.09 in	2.29 mm	Liquid Crystal Polymer (LCP)	125 °C	-65 ░C	Square	Black	0.1 in	2.54 mm	3 A	2	0.23 in	5.84 mm	Board to Board Cable	Tin-Lead	All	Male Pin	30	Surface Mount	Solder	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	2.54 çm	100 çin	Copper Alloy	Unshrouded	Breakaway Header	Tin-Lead
TE Connectivity Raychem Cable Protection 5-146134-5	30 VAC	Push-Pull	0.09 in	2.29 mm	Liquid Crystal Polymer (LCP)	125 °C	-65 ░C	Square	Black	0.1 in	2.54 mm	3 A	2	0.23 in	5.84 mm	Board to Board Cable	Tin	All	Male Pin	12	Surface Mount	Solder	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	2.54 çm	100 çin	Copper Alloy	Unshrouded	Breakaway Header
TE Connectivity Raychem Cable Protection 1-146134-9	30 VAC	Push-Pull	0.09 in	2.29 mm	Liquid Crystal Polymer (LCP)	125 °C	-65 ░C	Square	Black	0.1 in	2.54 mm	3 A	2	0.23 in	5.84 mm	Board to Board Cable	Tin	All	Male Pin		Surface Mount	Solder	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	2.54 çm	100 çin	Copper Alloy	Unshrouded	Breakaway Header		16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

146134 Series

Connector Header Surface Mount 8 position 0.100" (2.54mm)
