1N5820RL

Active

STMicroelectronics

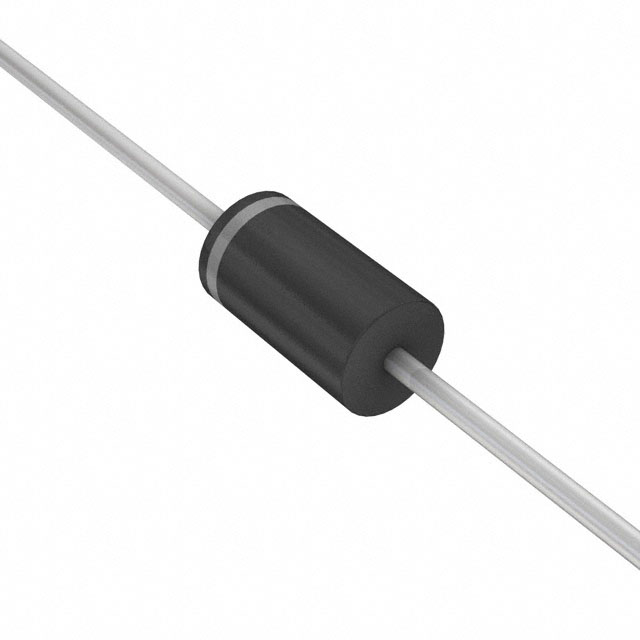

DIODE SCHOTTKY 20V 3A DO201AD

Search across all available documentation for this part.

Active

STMicroelectronics

DIODE SCHOTTKY 20V 3A DO201AD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1N5820RL	1N58 Series

Current - Average Rectified (Io)	3 A	3 A
Current - Reverse Leakage @ Vr	2 mA	2 mA
Mounting Type	Through Hole	Through Hole
Operating Temperature - Junction	150 °C	150 °C
Package / Case	DO-201AD, Axial	DO-201AD, Axial
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	DO-201AD	DO-201AD
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	20 V	20 - 30 V
Voltage - Forward (Vf) (Max) @ If	475 mV	475 - 500 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

DIODE SCHOTTKY 30V 3A DO201AD

Part	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Supplier Device Package	Package / Case	Technology	Mounting Type	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Voltage - Forward (Vf) (Max) @ If
STMicroelectronics 1N5821RL	200 mA, 500 ns	30 V	3 A	DO-201AD	DO-201AD, Axial	Schottky	Through Hole	2 mA	150 °C	500 mV
STMicroelectronics 1N5820	200 mA, 500 ns	20 V	3 A	DO-201AD	DO-201AD, Axial	Schottky	Through Hole	2 mA	150 °C	475 mV
STMicroelectronics 1N5821	200 mA, 500 ns	30 V	3 A	DO-201AD	DO-201AD, Axial	Schottky	Through Hole	2 mA	150 °C	500 mV
STMicroelectronics 1N5820RL	200 mA, 500 ns	20 V	3 A	DO-201AD	DO-201AD, Axial	Schottky	Through Hole	2 mA	150 °C	475 mV

General part information

Diode 20 V 3A Through Hole DO-201AD
