SW44 BK002

Active

ALPHA WIRE

SW44 BLACK 500 FT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ALPHA WIRE

SW44 BLACK 500 FT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SW44 BK002	SW44 Series

Color	Black	Black
Diameter - Inside, Non-Expanded [diameter]	15.75 mm	15.75 mm
Diameter - Inside, Non-Expanded [diameter]	0.62 in	0.62 in
Diameter - Outside, Non-Expanded [diameter]	19.05 mm	19.05 mm
Diameter - Outside, Non-Expanded [diameter]	0.75 in	0.75 in
Environment Protection	UV Resistant	UV Resistant
Length	-	100 ft
Length	-	30.48 m
Length [x]	500 '	25 - 500 '
Length [x]	152.4 m	7.62 - 152.4 m
Liquid Protection	Moisture Resistant	Moisture Resistant
Material	Polyethylene (PE)	Polyethylene (PE)
Operating Temperature [custom]	-66 °C, 88 °C	-66 - 88 °C
Type	Spiral Wrap	Spiral Wrap
Type Attributes	Harness	Harness
Wall Thickness	1.65 mm	1.65 mm
Wall Thickness	0.065 in	0.065 in

SPIRAL WRAP 0.62" X 100' BLACK

Part	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type Attributes	Environment Protection	Material	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Color	Wall Thickness	Wall Thickness	Operating Temperature [custom]	Type	Liquid Protection	Length	Length	Length [x]	Length [x]
ALPHA WIRE SW44 BK005	19.05 mm	0.75 in	Harness	UV Resistant	Polyethylene (PE)	15.75 mm	0.62 in	Black	1.65 mm	0.065 in	-66 °C, 88 °C	Spiral Wrap	Moisture Resistant	100 ft	30.48 m
ALPHA WIRE SW44 BK002	19.05 mm	0.75 in	Harness	UV Resistant	Polyethylene (PE)	15.75 mm	0.62 in	Black	1.65 mm	0.065 in	-66 °C, 88 °C	Spiral Wrap	Moisture Resistant			500 '	152.4 m
ALPHA WIRE SW44 BK008	19.05 mm	0.75 in	Harness	UV Resistant	Polyethylene (PE)	15.75 mm	0.62 in	Black	1.65 mm	0.065 in	-66 °C, 88 °C	Spiral Wrap	Moisture Resistant			25 ft	7.62 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

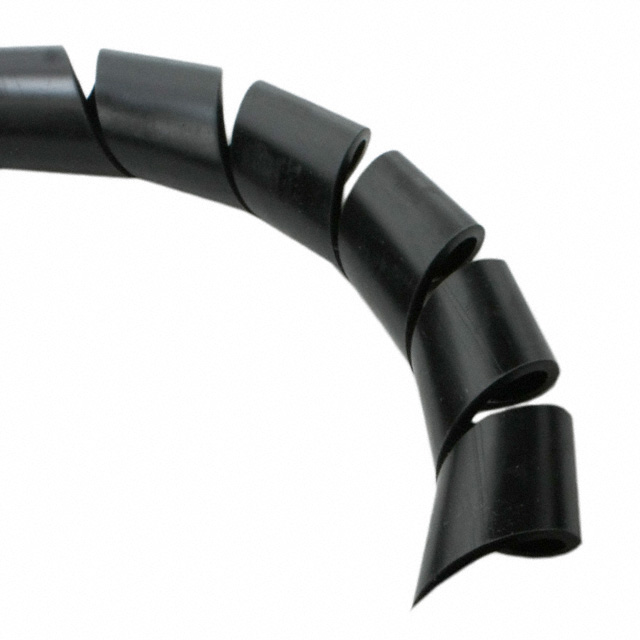

Spiral Wrap 0.750" (19.05mm) X 500' (152.40m) Black
