Description
General part information
09792967801

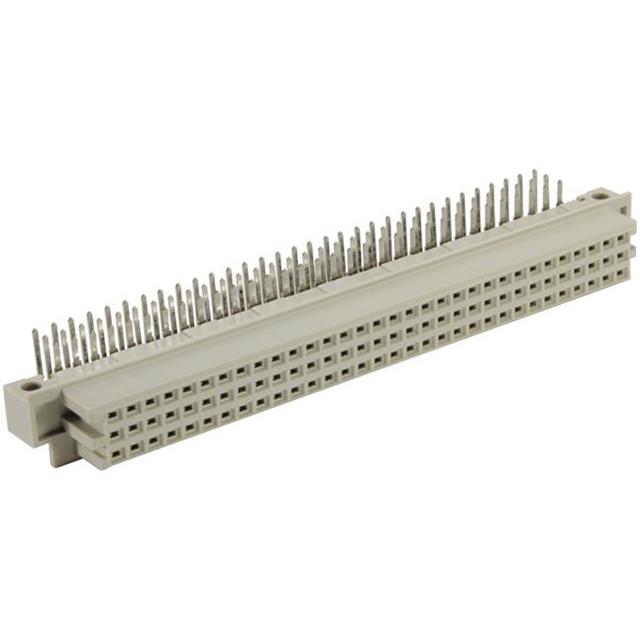

96 Position Din Connector Receptacle, Female Sockets Gold Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 09792967801 |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating | 2 A |
| Level, Class | 3 |
| Material - Insulation | Glass Filled, PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 96 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Style | R |
| Termination | Solder |
