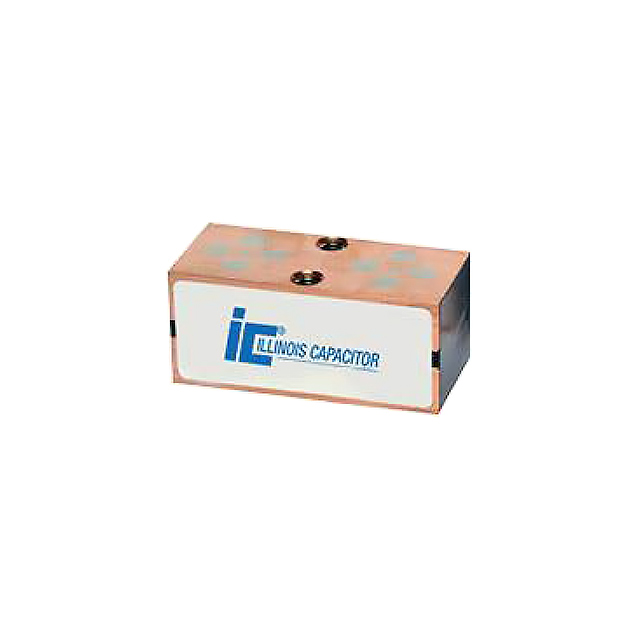

174HC2900K2CM6
ActiveCornell Dubilier Knowles
CAP FILM 0.17UF 900VAC CHAS MT
174HC2900K2CM6
ActiveCornell Dubilier Knowles
CAP FILM 0.17UF 900VAC CHAS MT
Description
General part information
174HC2900K2CM6
0.17 µF Film Capacitor 900V Polypropylene (PP) Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | 174HC2900K2CM6 |
|---|---|
| Applications | High Pulse, DV/DT, Conduction Cooled |
| Capacitance | 0.17 µF |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 1 mOhm |
| Height - Seated (Max) | 1.193 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Size / Dimension Length | 2.677 in |
| Size / Dimension Width | 1.181 in |
| Termination | Threaded, Female |
| Tolerance | 10 % |
| Voltage Rating - AC | 900 V |
