12.87113
ActiveGeyer Electronic America, Inc.

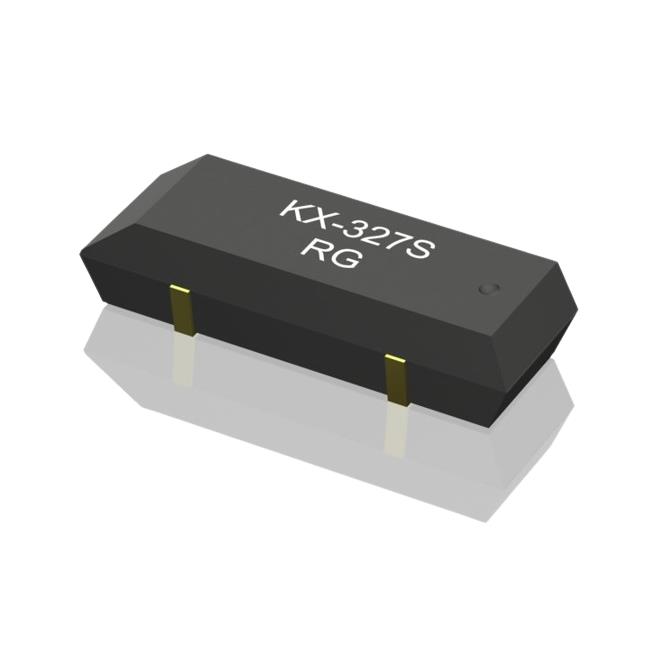

32.768KHZ CRYSTAL PLASTIC SMD 4
12.87113
ActiveGeyer Electronic America, Inc.
32.768KHZ CRYSTAL PLASTIC SMD 4
Description
General part information
12.87113
32.768KHZ CRYSTAL PLASTIC SMD 4
Technical Specifications
Parameters and characteristics for this part
| Specification | 12.87113 |
|---|---|
| ESR (Equivalent Series Resistance) | 50 kOhm |
| Frequency | 0.032768 MHz |
| Frequency Stability (Nominal) | -0.034 ppm |
| Frequency Stability (Tolerance) | 0.006 ppm |
| Frequency Tolerance | 5 ppm |
| Height - Seated (Max) | 0.098 in |
| Load Capacitance | 12.5 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 5.50mm pitch, 4-SOJ |
| Package Pitch | 5.5 mm |
| Size / Dimension Length | 0.323 in |
| Size / Dimension Width | 0.15 in |
| Type | kHz Crystal (Tuning Fork) |
