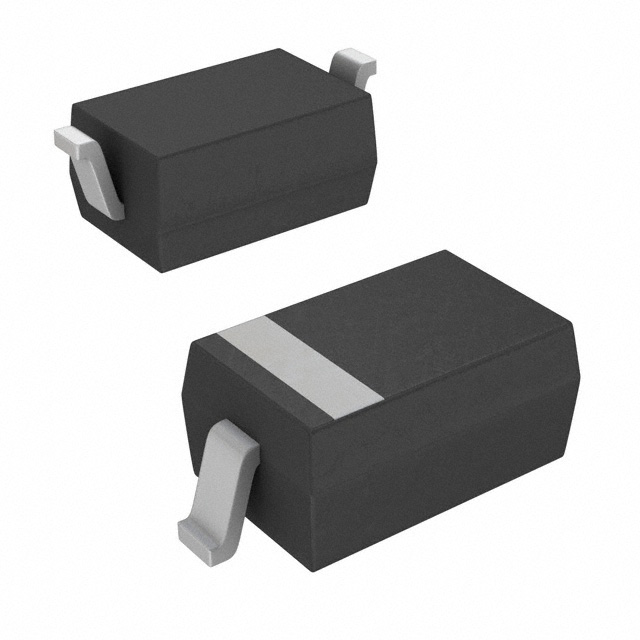

1N4148W

Active

SMC Diode Solutions

DIODE GEN PURP 75V 250MA SOD123

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE GEN PURP 75V 250MA SOD123

Technical Specifications

Parameters and characteristics for this part

Specification	1N4148W

Capacitance @ Vr, F	4 pF
Current - Average Rectified (Io)	250 mA
Current - Reverse Leakage @ Vr	2.5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123
Reverse Recovery Time (trr)	4 ns
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.25 V

Part	Current - Average Rectified (Io)	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Package / Case	Capacitance @ Vr, F	Technology	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - Forward (Vf) (Max) @ If [Max]
SMC Diode Solutions 1N4148WS	300 mA	SOD-323	1 V	75 V	Surface Mount	SC-90 SOD-323F	2 pF	Standard	200 mA 500 ns	4 ns	2.5 µA	-65 C	100 °C
SMC Diode Solutions 1N4148W	250 mA	SOD-123		75 V	Surface Mount	SOD-123	4 pF	Standard	200 mA 500 ns	4 ns	2.5 µA	-55 °C	150 °C	1.25 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 75 V 250mA Surface Mount SOD-123
