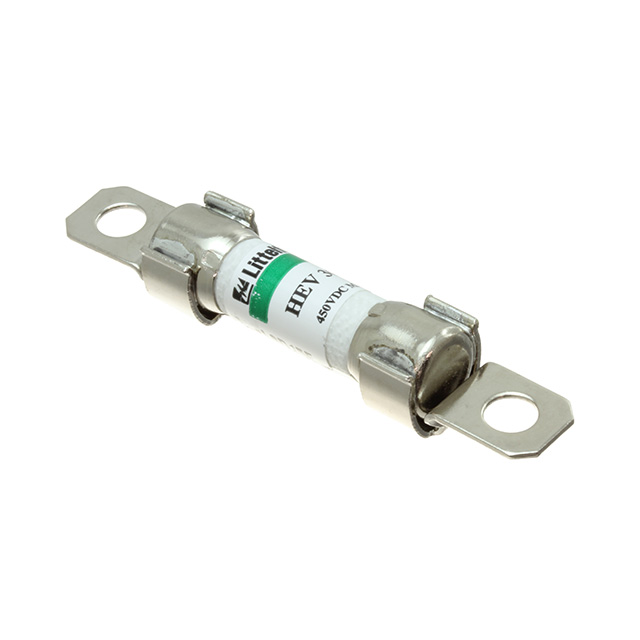

0HEV010.ZXBD
ObsoleteLITTELFUSE
FUSE - HEV LC 450VDC 10A, BOLTDOWN TABS/ BULK ROHS COMPLIANT: YES
0HEV010.ZXBD
ObsoleteLITTELFUSE
FUSE - HEV LC 450VDC 10A, BOLTDOWN TABS/ BULK ROHS COMPLIANT: YES
Description
General part information
0HEV010.ZXBD
10A 450 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 0HEV010.ZXBD |
|---|---|
| Applications | Lift Trucks |
| Breaking Capacity | 10 kA |
| Current Rating | 10 A |
| DC Cold Resistance | 0.0128 Ohms |
| Fuse Type | Cartridge |
| Melting I²t | 255 |
| Mounting Type | Bolt Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 0.469 in |
| Size / Dimension Length | 2.559 in |
| Voltage Rating - DC | 450 V |
