RG223-4.3/10M-SFRP(QTY:30m)
ActiveMcGill Microwave Systems
RG223 ASSY 4.3/10M-RP SMA MALE F
RG223-4.3/10M-SFRP(QTY:30m)
ActiveMcGill Microwave Systems
RG223 ASSY 4.3/10M-RP SMA MALE F
Description
General part information
RG223-4.3/10M-SFRP(QTY:30m)

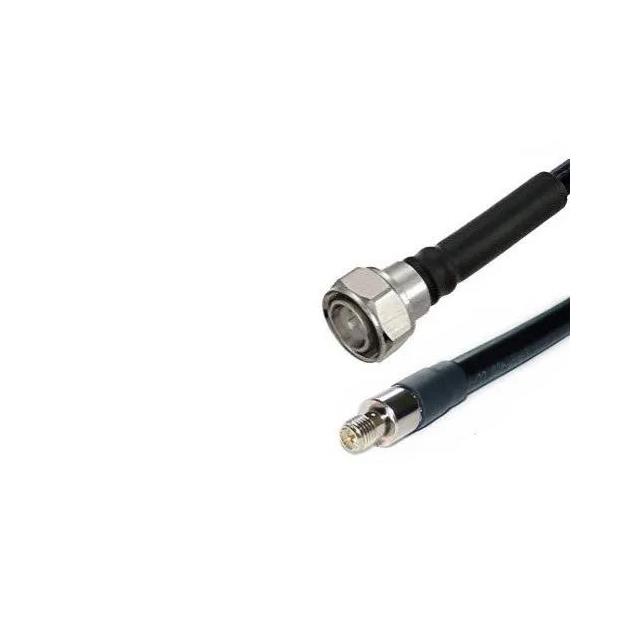

Cable Assembly Coaxial RP-SMA to 4.3/10 RG-223 1181.1" (30.0m) 98.4'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG223-4.3/10M-SFRP(QTY:30m) |
|---|---|
| 1st Connector | 4.3/10 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 4.3 mm |
| 1st Connector Dimension (2) | 10 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size (Dimension 1) | 4.3, 4.3 mm |
| 1st Connector Size (Dimension 2) | 10, 10 mm |
| 1st Connector Type | Plug |
| 1st Contact Gender | Male |
| 2nd Connector | RP-SMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Length | 98.425 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | RP-SMA to 4.3/10 |
