82-5152.11A4
ActiveEAO

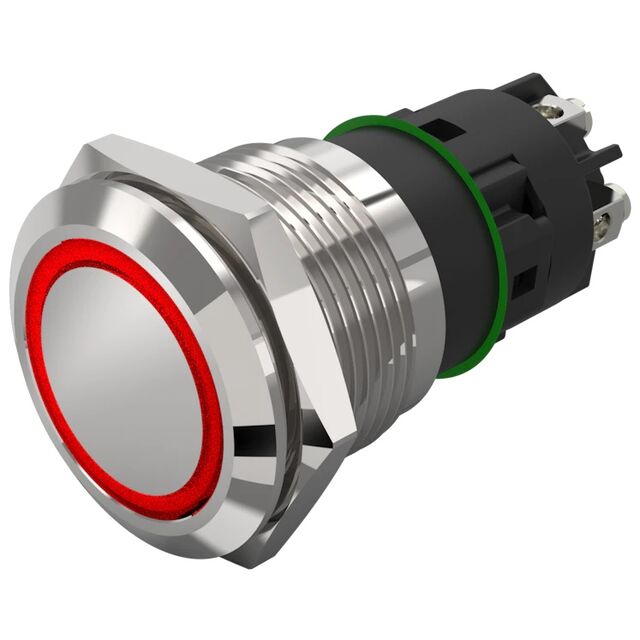

SWITCH PB SPDT 3A 240V
Deep-Dive with AI
Search across all available documentation for this part.
82-5152.11A4
ActiveEAO
SWITCH PB SPDT 3A 240V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 82-5152.11A4 | 82-5152 Series |
|---|---|---|
| - | - | |
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | SPDT |
| Color - Actuator/Cap | Silver | Silver |
| Current Rating (Amps) | 3 A | 3 A |
| Electrical Life | 50000 Cycles | 50000 Cycles |
| Illumination Type, Color | Green/Red, LED | LED, Green, Green/Red, Yellow |
| Illumination Voltage (Nominal) | 24 VAC/DC | 12 - 24 VAC/DC |
| Ingress Protection | IP67, IP65 | IP67, IP65 |
| Mechanical Life | 1000000 Cycles | 500000 - 1000000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Panel Cutout Dimensions [diameter] | 19 mm | 19 mm |
| Switch Function | On-Mom | On-On, On-Mom |
| Termination Style | Screw Terminal | Screw Terminal |
| Type | Illuminated, Standard | Illuminated, Standard |
| Voltage Rating - AC | 240 V | 240 V |
| Voltage Rating - DC | 240 V | 240 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.81 | |
| 10 | $ 32.62 | |||
| 25 | $ 30.75 | |||
| 50 | $ 29.41 | |||
| 100 | $ 28.12 | |||
| 250 | $ 26.50 | |||
82-5152 Series
VANDAL RESISTANT SWITCH, 24 V LED, 82 SERIES, 19 MM, SPDT, MAINTAINED, ROUND FLUSH FLAT, NATURAL
| Part | Voltage Rating - DC | Ingress Protection | Current Rating (Amps) | Type | Illumination Voltage (Nominal) | Actuator Marking | Mounting Type | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap | Circuit | Voltage Rating - AC | Switch Function | Illumination Type, Color | Mechanical Life | Actuator Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 82-5152.2134 | 240 V | IP65, IP67 | 3 A | Illuminated, Standard | 24 VAC/DC | No Marking | Panel Mount, Front | 50000 Cycles | 70 °C | -30 ░C | 19 mm | Silver | SPDT | 240 V | On-On | Green, LED | 500000 Cycles | Button, Flush, Round | Screw Terminal |
EAO 82-5152.2000 | 240 V | IP65, IP67 | 3 A | Standard | No Marking | Panel Mount, Front | 50000 Cycles | 70 °C | -30 ░C | 19 mm | Silver | SPDT | 240 V | On-On | 500000 Cycles | Button, Flush, Round | Screw Terminal | ||
EAO 82-5152.2000 | |||||||||||||||||||
EAO 82-5152.2134 | |||||||||||||||||||
EAO 82-5152.22A4 | 240 V | IP65, IP67 | 3 A | Illuminated, Standard | 24 VAC/DC | No Marking | Panel Mount, Front | 50000 Cycles | 70 °C | -30 ░C | 19 mm | Silver | SPDT | 240 V | On-On | Green/Red, LED | 500000 Cycles | Button, Flush, Round | Screw Terminal |
EAO 82-5152.1000 | 240 V | IP65, IP67 | 3 A | Standard | No Marking | Panel Mount, Front | 50000 Cycles | 70 °C | -30 ░C | 19 mm | Silver | SPDT | 240 V | On-Mom | 1000000 Cycles | Button, Flush, Round | Screw Terminal | ||
EAO 82-5152.1000 | |||||||||||||||||||
EAO 82-5152.11A4 | 240 V | IP65, IP67 | 3 A | Illuminated, Standard | 24 VAC/DC | No Marking | Panel Mount, Front | 50000 Cycles | 70 °C | -30 ░C | 19 mm | Silver | SPDT | 240 V | On-Mom | Green/Red, LED | 1000000 Cycles | Button, Flush, Round | Screw Terminal |
EAO 82-5152.2143 | 240 V | IP65, IP67 | 3 A | Illuminated, Standard | 12 VAC/DC | No Marking | Panel Mount, Front | 50000 Cycles | 70 °C | -30 ░C | 19 mm | Silver | SPDT | 240 V | On-On | LED, Yellow | 500000 Cycles | Button, Flush, Round | Screw Terminal |
Description
General part information
82-5152 Series
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
