1414686
ActivePhoenix Contact

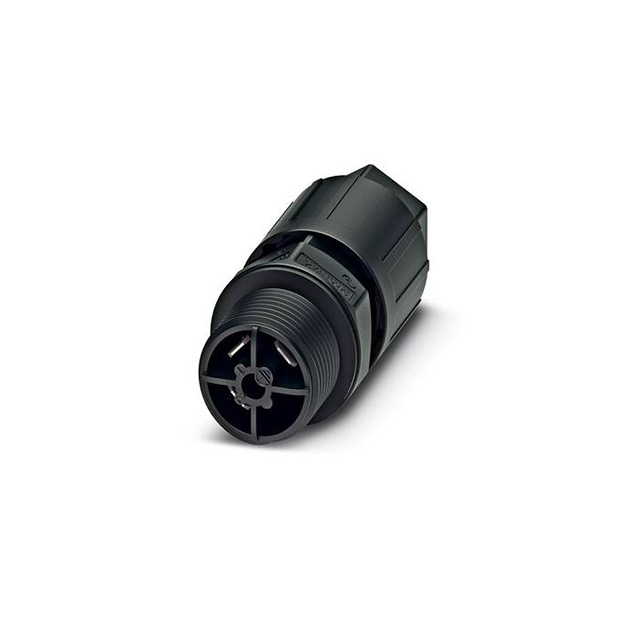

CIRCULAR METRIC CONNECTORS QPD W 2PE1,5 4-9 M20 FC BK
1414686
ActivePhoenix Contact
CIRCULAR METRIC CONNECTORS QPD W 2PE1,5 4-9 M20 FC BK
Description
General part information
1414686
3 (2 + PE) Position Circular Connector Panel Feed-Through IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1414686 |
|---|---|
| Backshell Material, Plating | Nylon, Polyamide (PA) |
| Cable Opening (Max) | 0.374 in |
| Cable Opening (Min) | 0.197 in |
| Color | Black |
| Connector Type | Panel Feed-Through |
| Contact Finish - Mating | Silver |
| Contact Material | Copper |
| Current Rating | 17.5 A |
| Fastening Type | Threaded |
| Features | Backshell |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP69K, IP68, IP66 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount |
| Number of Positions | 3 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Keyed |
| Position Types | PE |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert | M20-3 |
| Shielding | Unshielded |
| Termination | IDC |
