1379681-1
ActiveTE Connectivity AMP Connectors

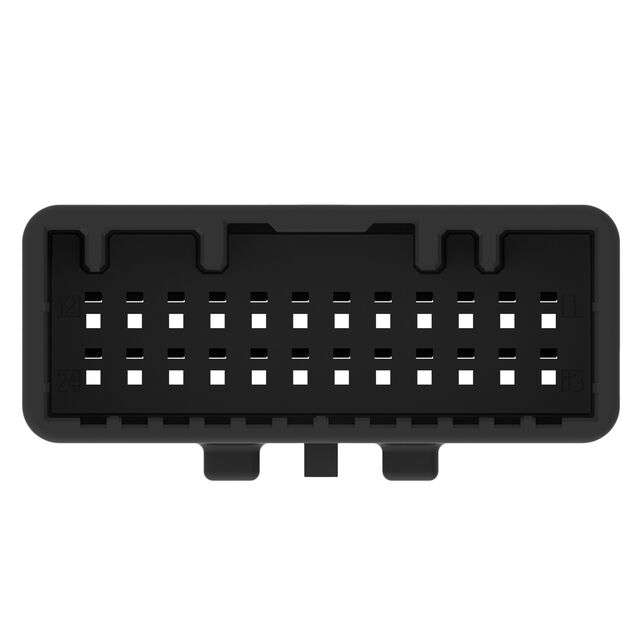

24W TAB HSG ASSY BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1379681-1
ActiveTE Connectivity AMP Connectors
24W TAB HSG ASSY BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1379681-1 | 1379681 Series |
|---|---|---|
| - | - | |
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Tab | Tab |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Terminal Position Lock (TPA) | Terminal Position Lock (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 24 | 24 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.087 in | 0.087 in |
| Pitch [x] | 2.2 mm | 2.2 mm |
| Row Spacing [x] | 0.118 in | 0.118 in |
| Row Spacing [x] | 3 mm | 3 mm |
1379681 Series
24W TAB HSG ASSY GRAY
| Part | Pitch [x] | Pitch [x] | Row Spacing [x] | Row Spacing [x] | Insulation Material | Contact Termination | Number of Rows | Number of Positions | Contact Type | Features | Color | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Connector Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1379681-2 | ||||||||||||||||
TE Connectivity AMP Connectors 1379681-1 | 0.087 in | 2.2 mm | 0.118 in | 3 mm | Polybutylene Terephthalate (PBT) | Crimp | 2 | 24 | Tab | Terminal Position Lock (TPA) | Black | 100 °C | -40 °C | Free Hanging (In-Line) | Plug | Push-Pull |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.73 | |
| 10 | $ 1.51 | |||
| 25 | $ 1.44 | |||
| 50 | $ 1.41 | |||
| 100 | $ 1.35 | |||
| 250 | $ 1.22 | |||
| 800 | $ 1.09 | |||
| 1600 | $ 0.93 | |||
| 3200 | $ 0.90 | |||
Description
General part information
1379681 Series
24 Rectangular Connectors - Housings Plug Black 0.087" (2.20mm)
