Description
General part information

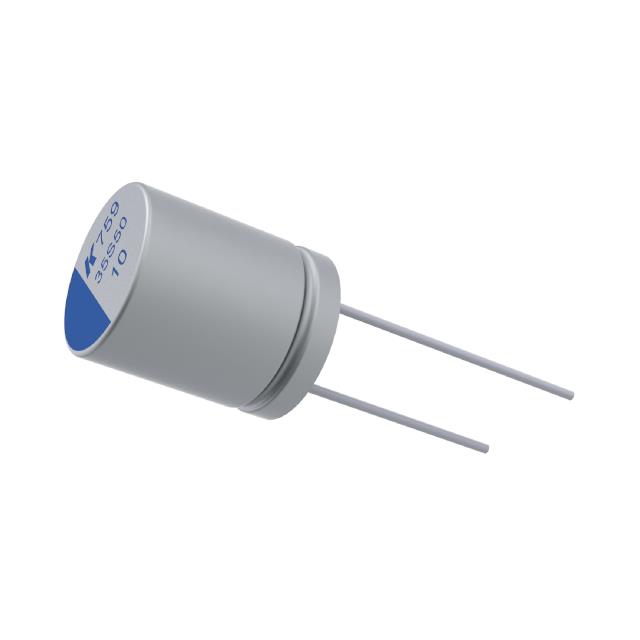

A759MS227M1VAAE030
220 µF 35 V Aluminum - Polymer Capacitors Radial, Can 30mOhm 2000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | A759MS227M1VAAE030 |
|---|---|
| Applications | General Purpose |
| Capacitance | 220 µF |
| ESR (Equivalent Series Resistance) | 30 mOhm |
| Height - Seated (Max) | 0.512 in |
| Lead Spacing | 0.197 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 35 V |
