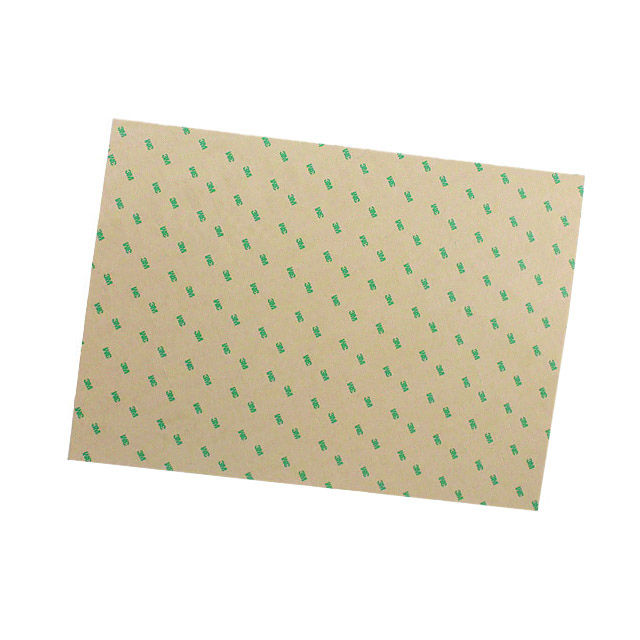

Specification	5-F9473PC-1/2-2R

Adhesive	Acrylic
Backing	Polycoated Kraft Liner
Carrier	Polycoated Kraft Liner
Color	Clear
Length	2 in
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature (Maximum)	80 °F
Storage/Refrigeration Temperature (Minimum)	60 °F
Tape Type	Adhesive Transfer
Thickness	0.0142 in
Usage	General Purpose
Width	12.7 mm

F9473PC Series

...

Part	Shelf Life Start	Shelf Life	Storage/Refrigeration Temperature (Maximum)	Storage/Refrigeration Temperature (Minimum)	Thickness - Adhesive	Carrier	Backing	Length	Color	Width	Tape Type	Temperature Range (Max)	Thickness	Adhesive	Thickness - Backing, Carrier	Length (ft)	Length (yd)	Usage
3M (TC) 3M F9473PC 1.5" X 6"-100	Date of Manufacture	24 Months	80 °F	60 °F	0.01 in	Polycoated Kraft Liner	Polycoated Kraft Liner	0.5 ft	Clear	1.5 in	Adhesive Transfer	300 °F	0.014 in	Acrylic 100MP	0.004 in
3M (TC) 3M F9473PC 4" X 4"-25	Date of Manufacture	24 Months	80 °F	60 °F	0.01 in	Polycoated Kraft Liner	Polycoated Kraft Liner	4 in	Clear	4 in	Adhesive Transfer	300 °F	0.014 in	Acrylic 100MP	0.004 in
3M (TC) 3M F9473PC 3/4" X 3"-100	Date of Manufacture	24 Months	80 °F	60 °F	0.01 in	Polycoated Kraft Liner	Polycoated Kraft Liner	3 "	Clear	0.75 in	Adhesive Transfer	300 °F	0.014 in	Acrylic 100MP	0.004 in
3M (TC) 3M F9473PC 1.75" X 60YD	Date of Manufacture	24 Months	80 °F	60 °F	0.01 in	Polycoated Kraft Liner	Polycoated Kraft Liner		Clear	1.75 in	Adhesive Transfer	300 °F	0.014 in	Acrylic 100MP	0.004 in	180 ft	60 yd
3M (TC) 3M F9473PC 4" X 1.25"-25	Date of Manufacture	24 Months	80 °F	60 °F	0.01 in	Polycoated Kraft Liner	Polycoated Kraft Liner	1.25 in	Clear	4 in	Adhesive Transfer	300 °F	0.014 in	Acrylic 100MP	0.004 in
3M (TC) 3M F9473PC 1" X 5"-100	Date of Manufacture	24 Months	80 °F	60 °F	0.01 in	Polycoated Kraft Liner	Polycoated Kraft Liner	5 in	Clear	1 in	Adhesive Transfer	300 °F	0.014 in	Acrylic 100MP	0.004 in
3M (TC) F9473PC-3-5	Date of Manufacture	24 Months	80 °F	60 °F	0.01 in	Polycoated Kraft Liner	Polycoated Kraft Liner		Clear	3 in	Adhesive Transfer		0.014 in	Acrylic 100MP	0.004 in	15 ft	5 yd	Attachment High Temperature Applications
3M (TC) F9473PC-0.375-5	Date of Manufacture	24 Months	80 °F	60 °F	0.01 in	Polycoated Kraft Liner	Polycoated Kraft Liner		Clear	0.38 in	Adhesive Transfer	300 °F	0.014 in	Acrylic 100MP	0.004 in	15 ft	5 yd
3M (TC) 3M F9473PC 4" X 7.25"-25	Date of Manufacture	24 Months	80 °F	60 °F	0.01 in	Polycoated Kraft Liner	Polycoated Kraft Liner	7.25 in	Clear	4 in	Adhesive Transfer	300 °F	0.014 in	Acrylic 100MP	0.004 in
3M (TC) F9473PC-0.375-60	Date of Manufacture	24 Months	80 °F	60 °F	0.01 in	Polycoated Kraft Liner	Polycoated Kraft Liner		Clear	0.38 in	Adhesive Transfer	300 °F	0.014 in	Acrylic 100MP	0.004 in	180 ft	60 yd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

5-F9473PC-1/2-2R | Datasheet
