GW JSLPS1.EM-KULQ-XX58-1-150-R18
Obsoleteams-OSRAM USA INC.

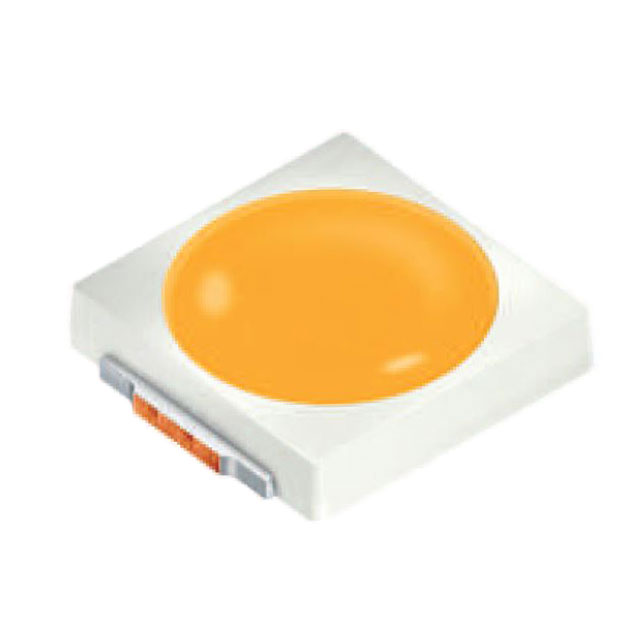

LED DURIS S5E WARM WHT 2700K SMD
GW JSLPS1.EM-KULQ-XX58-1-150-R18
Obsoleteams-OSRAM USA INC.
LED DURIS S5E WARM WHT 2700K SMD
Description
General part information
GW JSLPS1.EM-KULQ-XX58-1-150-R18
LED Lighting DURIS® S 5E White, Warm 2700K 6.35V 150mA 120° 1212 (3030 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | GW JSLPS1.EM-KULQ-XX58-1-150-R18 |
|---|---|
| CCT (K) | 2700 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Current - Max | 200 mA |
| Current - Test | 150 mA |
| Flux (Maximum) | 130 lm |
| Flux (Minimum) | 104 lm |
| Flux (Nominal) | 117 lm |
| Height - Seated (Max) | 0.028 in |
| Lumens/Watt | 124 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1212 (3030 Metric) |
| Package Name | 1212, SMD |
| Size / Dimension Length | 0.118 in |
| Size / Dimension Width | 0.114 in |
| Thermal Resistance of Package | 22 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 6.35 V |
