111990004
ActiveSeeed Technology Co., Ltd
SOLENOID VALVE ONE-WAY PANEL MNT
111990004
ActiveSeeed Technology Co., Ltd
SOLENOID VALVE ONE-WAY PANEL MNT
Description
General part information
111990004

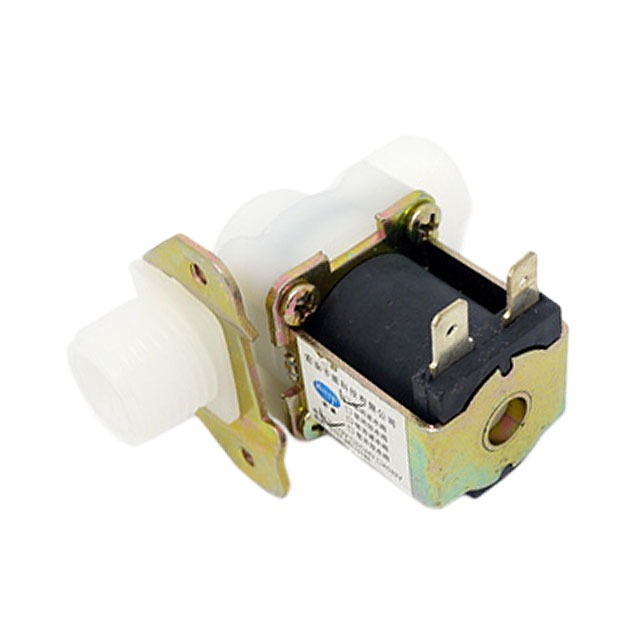

2/2 Normally Closed Solenoid Valve Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 111990004 |
|---|---|
| Connection Method | Threaded |
| Features | Supply Voltage 12VDC |
| Fluid Type | Liquid |
| Function | 2 Normally Closed, 2 |
| Mechanical Life (Cycles) | 200000 Cycles |
| Mounting Type | Panel Mount |
| Operating Pressure (Max) | 116.03 PSI |
| Operating Pressure (Min) | 2.9 PSI |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | 0 °C |
| Thread Size | 0.5 in |
| Thread Standard | BSP |
| Type | Solenoid Valve |
| Weight | 0.252 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
