1756-48
ActivePomona Electronics
SPADE TERM TO SPADE TERM 48"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1756-48
ActivePomona Electronics
SPADE TERM TO SPADE TERM 48"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1756-48 |
|---|---|
| 1st Connector | Spade Terminal (2) |
| 2nd Connector | Spade Terminal (2) |
| Cable Length | 48 in |
| Cable Length | 1219.2 mm |
| Configuration | Spade Terminal to Spade Terminal |
| Contents | Black and Red Lugs, Black, Black Leads, 1 Cable |
| Current Rating (Amps) | 20 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Temperature Range | 55 °C |
| Temperature Range | 131 °F |
| Voltage - Rated | 2 kV |
| Voltage - Rated | 2000 VAC, DC |
| Wire Gauge | 12 AWG, 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 66.39 | |
| 25 | $ 65.44 | |||
Description
General part information
1756-48

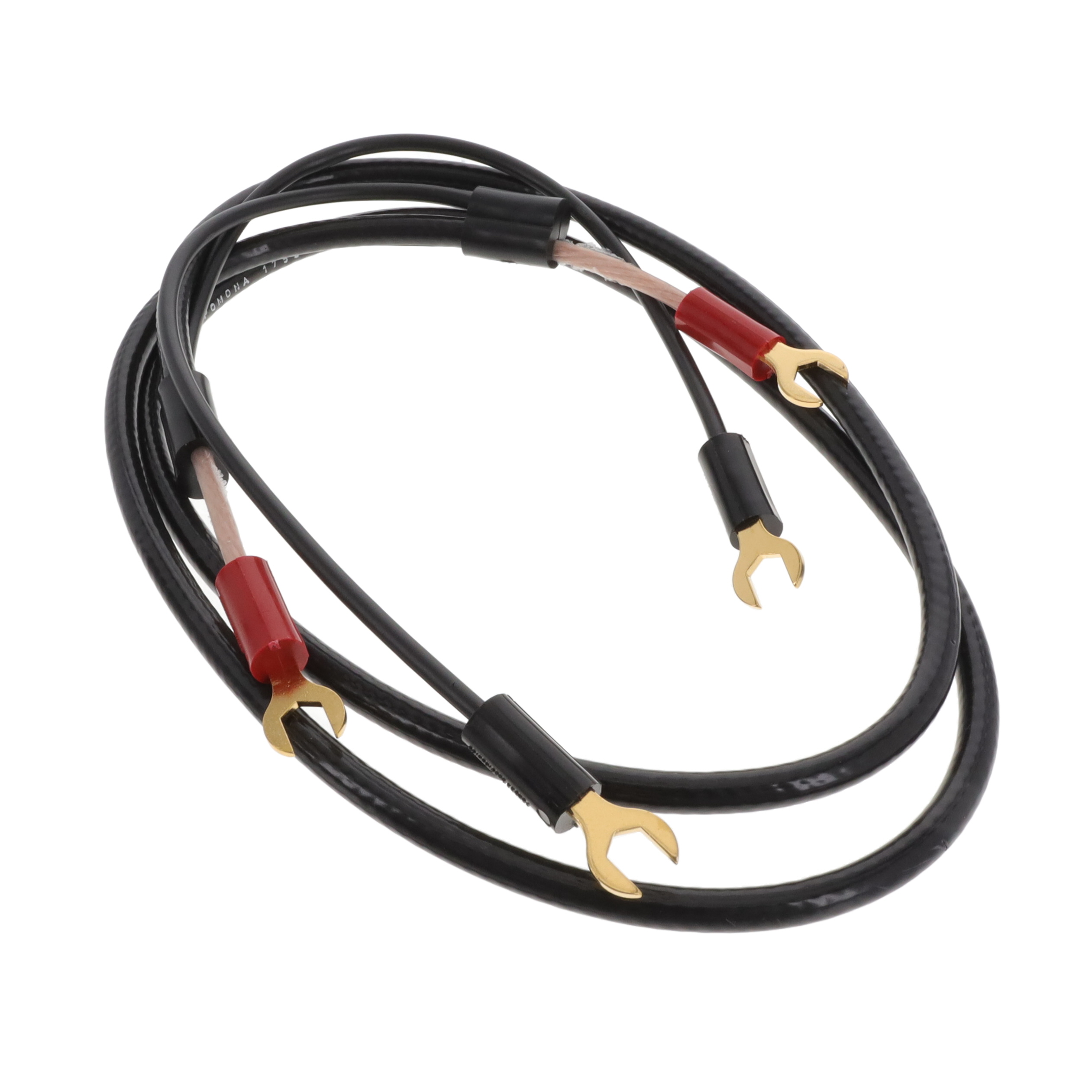

48.0" (1219.20mm) Spade Terminal (2) To Spade Terminal (2) Test Lead 2000VAC, DC (2kV) 1 Cable, Black, Black Leads, Black and Red Lugs
