Description
General part information

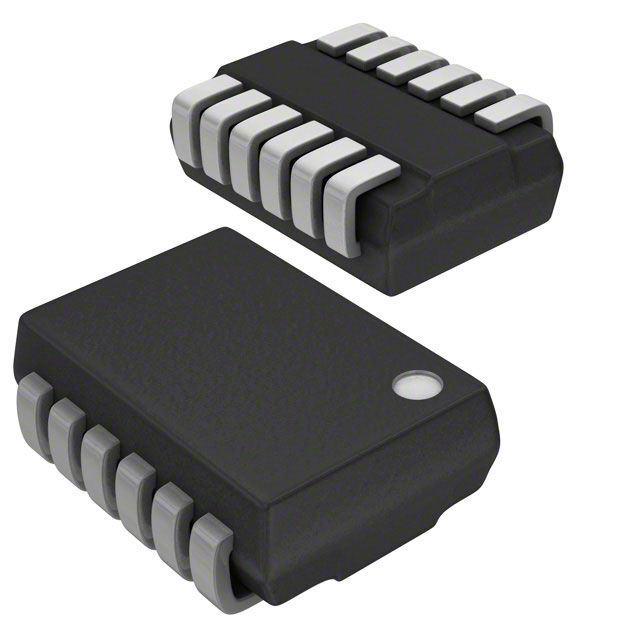

RX-4803LC:AA3 PURE SN
Real Time Clock (RTC) IC Clock/Calendar SPI 12-TFSOJ (0.094", 2.40mm Width)
Technical Specifications
Parameters and characteristics for this part
| Specification | RX-4803LC:AA3 PURE SN |
|---|---|
| Current - Timekeeping (Max) Maximum | 3.4 µA |
| Current - Timekeeping (Max) Minimum | 2.1 µA |
| Date Format | YY-MM-DD-dd |
| Features | Leap Year, Alarm |
| Interface | SPI |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Length | 0.094 " |
| Package Name | 12-TFSOJ, 12-VSOJ |
| Package Width | 2.4 mm |
| Time Format | HH:MM:SS (24 hr) |
| Type | Clock/Calendar |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 1.6 V |
