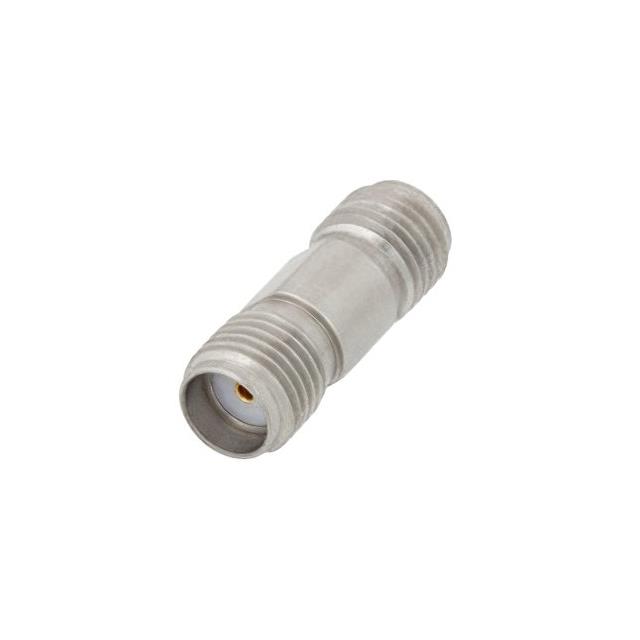

PE9725
ActivePasternack
SMA FEMALE TO 3.5MM FEMALE ADAPT
PE9725
ActivePasternack
SMA FEMALE TO 3.5MM FEMALE ADAPT
Description
General part information
PE9725
Adapter Coaxial Connector SMA Jack, Female Socket To 3.5mm Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9725 |
|---|---|
| Adapter Series | SMA |
| Adapter Series Size | 3.5 mm |
| Adapter Type | Jack to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Size | 3.5 mm |
| Convert To (Adapter End) Type | Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE), Polyphenylene Oxide (PPO) |
| Fastening Type | Threaded |
| Frequency - Max | 27 GHz |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
