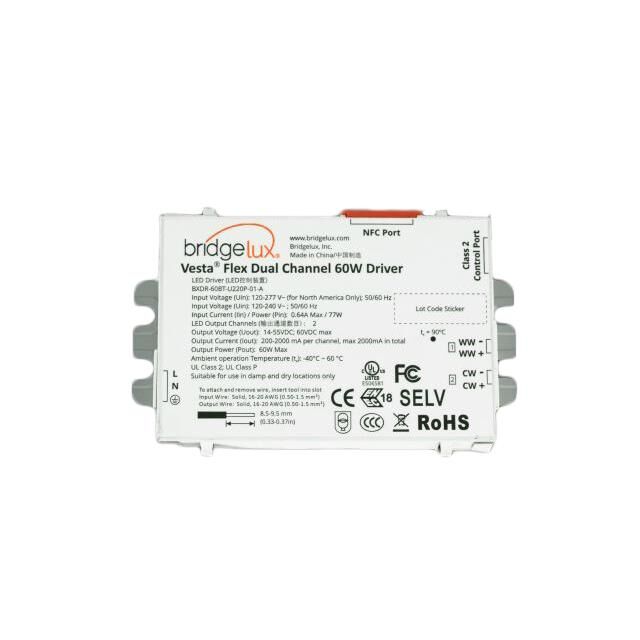

BXDR-60BT-U220P-01-A

Active

BRIDGELUX

DRIVER MODULE, PWM, RJ45, 60W, BRICK ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

BRIDGELUX

DRIVER MODULE, PWM, RJ45, 60W, BRICK ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

DRIVER MODULE, PWM, RJ45, 60W, BRICK ROHS COMPLIANT: YES

Part	Termination Style	Approval Agency	Type	Voltage - Output [Max]	Voltage - Output [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Efficiency	Current - Output (Max) [Max]	Power (Watts)	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Features	Mounting Type	Voltage - Input (Min) [Min]
BRIDGELUX BXDR-60BT-U220P-01-A	Terminal Block	CE, cURus	Constant Current	57 V	14 V	45 °C	-20 C	AC DC Converter	88 %	2 A	60 W	2	5.12 "	30 mm	3.03 in	130 mm	77 mm	1.18 in	277 VAC	OTP, OVP, SCP	Chassis Mount	120 VAC
BRIDGELUX BXDR-60LT-U220P-01-A	Terminal Block	CE, cURus	Constant Current	57 V	14 V	45 °C	-20 C	AC DC Converter	88 %	2 A	60 W	2	12.6 "	28 mm	1.26 in	320 mm	32 mm	1.1 in	277 VAC	OTP, OVP, SCP	Chassis Mount	120 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2A 14 ~ 57V Constant Current LED Driver AC DC Converter Topology 2 Output
