SCP8WTF1HEL1WUK34E

Active

Samsung Semiconductor, Inc.

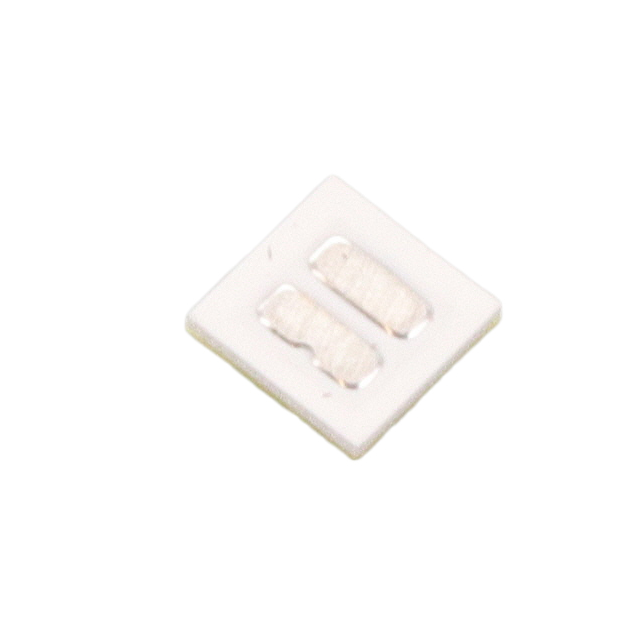

LED LH181B WARM WHT 2700K SMD

Search across all available documentation for this part.

Active

Samsung Semiconductor, Inc.

LED LH181B WARM WHT 2700K SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting LH181B White, Warm 2700K 3-Step MacAdam Ellipse 2.9V 350mA 120° 2-SMD, No Lead

Technical documentation and resources

Parameters and characteristics commom to parts in this series

LED LH181B WARM WHT 2700K SMD

Part	CCT (K)	Mounting Type	Current - Test	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Color	Lumens/Watt @ Current - Test	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Viewing Angle	CRI (Color Rendering Index)	Current - Max [Max]
Samsung Semiconductor, Inc. SCP8WTF1HEL1WKK34E	2700 K	Surface Mount	350 mA	130 lm	160 lm	145 lm	2.36 mm	0.093 in	2.36 mm	0.093 in	2-SMD, No Lead	0.019 in	0.48 mm	Warm, White	143 lm/W	SMD	2.9 V	120 °	80	1.4 A
Samsung Semiconductor, Inc. SCP8WTF1HEL1WUK34E	2700 K	Surface Mount	350 mA	130 lm	160 lm	145 lm	2.36 mm	0.093 in	2.36 mm	0.093 in	2-SMD, No Lead	0.019 in	0.48 mm	Warm, White	143 lm/W	SMD	2.9 V	120 °	80	1.4 A
