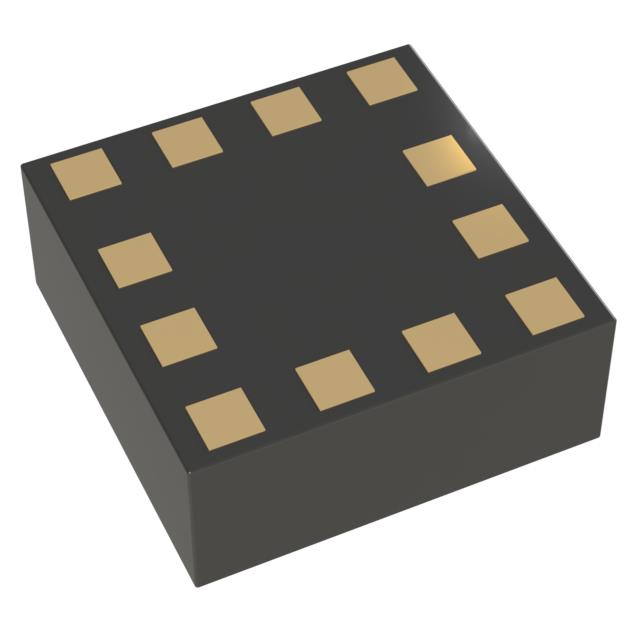

KX222-1054-SR

Obsolete

Kionix Inc.

ACCEL 8-32G I2C/SPI 12LGA

Search across all available documentation for this part.

Obsolete

Kionix Inc.

ACCEL 8-32G I2C/SPI 12LGA

Technical Specifications

Parameters and characteristics commom to parts in this series

ACCEL 8-32G I2C/SPI 12LGA

Part	Output Type	Features	Bandwidth	Supplier Device Package	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Axis [z]	Axis [y]	Axis [x]	Package / Case	Sensitivity (LSB/g)	Operating Temperature [Max]	Operating Temperature [Min]	Acceleration Range	Acceleration Range [Max]	Acceleration Range [Min]	Mounting Type	Sensing Range	Sensor Type	Embedded	Utilized IC / Part	Supplied Contents	Interface
Kionix Inc. KX222-1054-SR	I2C, SPI	Selectable Scale	800 Hz	12-LGA (2x2)	Digital	3.6 V	1.71 V	Z	Y	X	12-VFLGA	1024 LSB/g, 4096 LSB/g	85 °C	-40 °C	16 g, 32 g	8 g	-8 g	Surface Mount
Kionix Inc. KX222-1054-EVB0A0						3.6 V	1.71 V												2 g, 8 g, 16 g	Accelerometer, 3 Axis	Yes, ASIC	KX222-1054	Board(s)	I2C, Serial, SPI
Kionix Inc. KX222-1054	I2C, SPI	Selectable Scale	800 Hz	12-LGA (2x2)	Digital	3.6 V	1.71 V	Z	Y	X	12-VFLGA	1024 LSB/g, 4096 LSB/g	85 °C	-40 °C	16 g, 32 g	8 g	-8 g	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer X, Y, Z Axis ±8g, 16g, 32g 800Hz 12-LGA (2x2)
