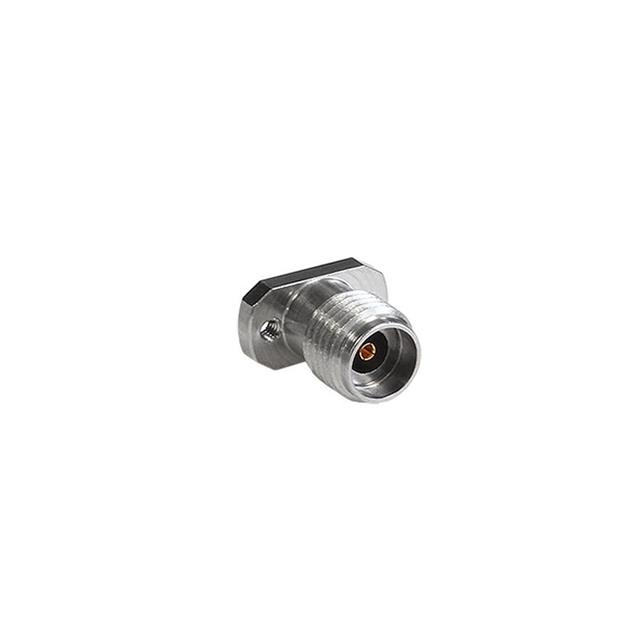

Specification	RF292DJB

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Connector Plug Diameter	2.92 mm
Connector Type	Jack, Female Socket
Contact Termination	Compression
Dielectric Material	Polyetherimide (PEI)
Fastening Type	Threaded
Frequency - Max	40 Gbps
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Screw
Voltage Rating	250 V

RF292 Series

...

Part	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Mating Cycles	Voltage Rating	Body Material	Contact Termination	Number of Ports	Shield Termination	Connector Type	Impedance	Fastening Type	Housing Color	Connector Plug Diameter	Center Contact Material	Frequency - Max	Mounting Feature	Mounting Type
BULGIN LIMITED RF292A2JCCB	-40 °C	85 °C	Polyetherimide (PEI)	500 cycles	250 V	Stainless Steel	Compression	1	Screw	Female Socket Jack	50 Ohm	Threaded	Silver	2.92 mm	Beryllium Copper	40 Gbps	Flange	Panel Mount
BULGIN LIMITED RF292A4JCCE	-40 °C	85 °C	Polyetherimide (PEI)	500 cycles	250 V	Stainless Steel	Solder	1	Solder	Female Socket Jack	50 Ohm	Threaded	Silver	2.92 mm	Beryllium Copper	40 Gbps	Flange	Panel Mount Through Hole
BULGIN LIMITED RF292A4JCCES	-40 °C	85 °C	Polyetherimide (PEI)	500 cycles	250 V	Stainless Steel	Solder	1	Solder	Female Socket Jack	50 Ohm	Threaded	Silver	2.92 mm	Beryllium Copper	40 Gbps	Flange	Panel Mount Through Hole
BULGIN LIMITED RF292A2JCCC	-40 °C	85 °C	Polyetherimide (PEI)	500 cycles	250 V	Stainless Steel	Compression	1	Screw	Female Socket Jack	50 Ohm	Threaded	Silver	2.92 mm	Beryllium Copper	40 Gbps	Flange	Panel Mount
BULGIN LIMITED RF292A4PCCDK	-40 °C	85 °C	Polyetherimide (PEI)	500 cycles	250 V	Stainless Steel	Solder	1	Solder	Male Pin Plug	50 Ohm	Threaded	Silver	2.92 mm	Beryllium Copper	40 Gbps	Flange	Panel Mount Through Hole
BULGIN LIMITED RF292EJ	-55 °C	125 °C	Polyetherimide (PEI)	500 cycles	250 V	Stainless Steel	Compression	1	Screw	Female Socket Jack	50 Ohm	Threaded	Silver	2.92 mm	Beryllium Copper	40 Gbps		Board Edge End Launch
BULGIN LIMITED RF292DJA	-55 °C	125 °C	Polyetherimide (PEI)	500 cycles	250 V	Stainless Steel	Compression	1	Screw	Female Socket Jack	50 Ohm	Threaded	Silver	2.92 mm	Beryllium Copper	40 Gbps	Flange	Panel Mount
BULGIN LIMITED RF292APG	-65 °C	165 °C	Polyetherimide (PEI)	500 cycles	250 V	Stainless Steel	Solder	1	Solder	Male Pin Plug	50 Ohm	Threaded	Silver	2.92 mm	Beryllium Copper	40 Gbps		Free Hanging (In-Line)
BULGIN LIMITED RF292A2JDFDK	-40 °C	85 °C	Polyetherimide (PEI)	500 cycles	250 V	Stainless Steel	Solder	1	Solder	Female Socket Jack	50 Ohm	Threaded	Silver	2.92 mm	Beryllium Copper	40 Gbps	Flange	Panel Mount Through Hole
BULGIN LIMITED RF292A2JDFDP	-40 °C	85 °C	Polyetherimide (PEI)	500 cycles	250 V	Stainless Steel	Solder	1	Solder	Female Socket Jack	50 Ohm	Threaded	Silver	2.92 mm	Beryllium Copper	40 Gbps	Flange	Panel Mount Through Hole
