Description
General part information
17011322203

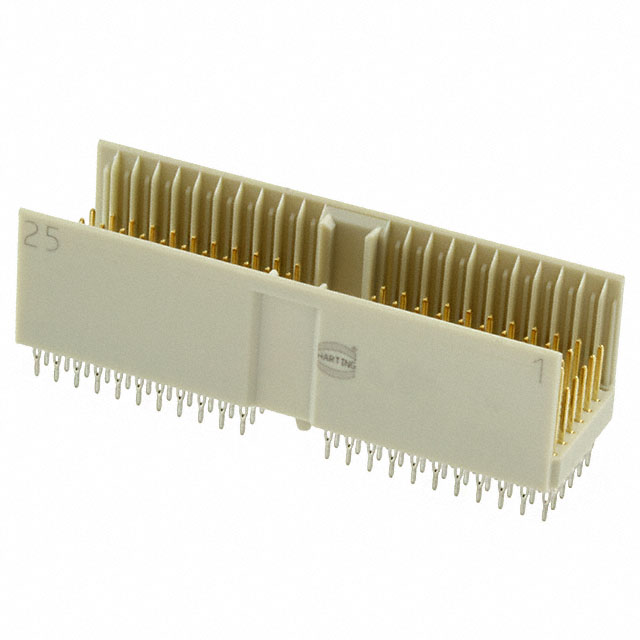

132 (110 + 22 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 17011322203 |
|---|---|
| Connector Style | A 22 |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold-Palladium, Gold |
| Current Rating | 1 A |
| Features | Board Guide |
| Mounting Type | Through Hole |
| Number of Positions | 132 |
| Number of Positions Loaded | All |
| Number of Rows (Part 1) | 5 |
| Number of Rows (Part 2) | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.079 in |
| Position Types | Ground |
| Termination | Press-Fit |
