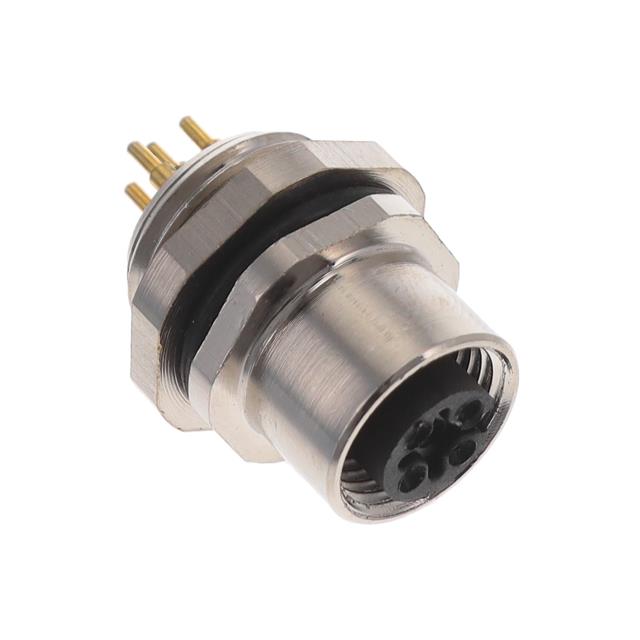

ALBKF12-FPBR5-S0
ActiveAltech Corporation
BULKHEAD CONN. M12 FRONT MT. 5-P
ALBKF12-FPBR5-S0
ActiveAltech Corporation
BULKHEAD CONN. M12 FRONT MT. 5-P
Description
General part information
ALBKF12-FPBR5-S0
5 Position Circular Connector Plug, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | ALBKF12-FPBR5-S0 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Fastening Type | Threaded |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 5 |
| Orientation | A |
| Shell Material | Brass |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Termination | Solder |
