07017550
ActivePerle Systems

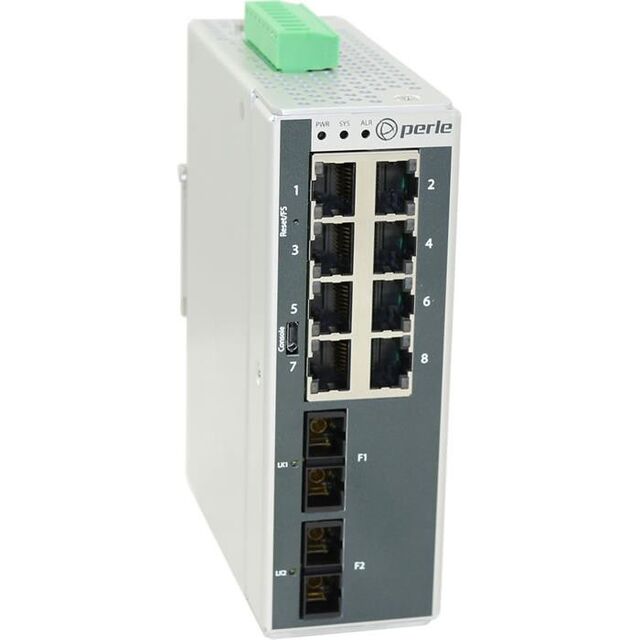

IDS-710-C2MD05-XT ETH SWITCH
07017550
ActivePerle Systems
IDS-710-C2MD05-XT ETH SWITCH
Description
General part information
07017550
Network Switch - Managed 10 Ports IP20
Technical Specifications
Parameters and characteristics for this part
| Specification | 07017550 |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ45, SC |
| Copper Ports | 8 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Fiber Mode | Multimode |
| Fiber Ports | 2 |
| Fiber Type | 1000BASE-SX |
| Ingress Protection | IP20 |
| Mounting Type | DIN Rail |
| Number of Ports | 10 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Switch - Managed |
| Voltage - Input (Maximum) | 60 V |
| Voltage - Input (Minimum) | 9.6 V |
