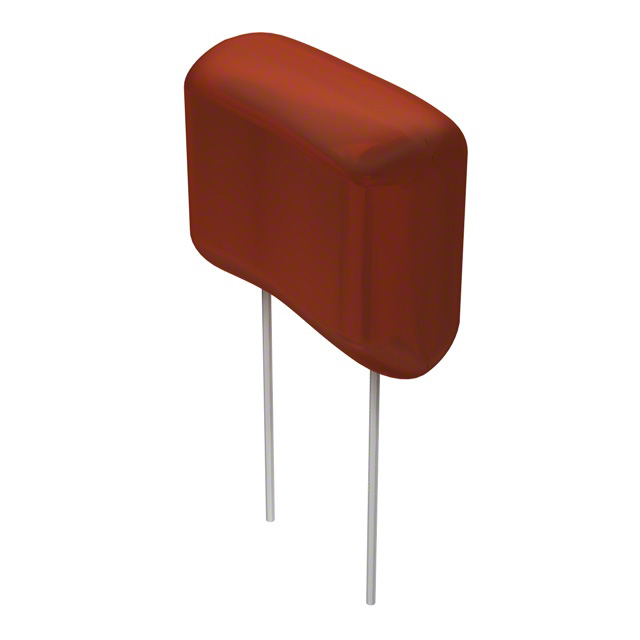

DPP2P22K-F
ActiveCornell Dubilier Knowles
CAP FILM 0.22UF 10% 250VDC RAD
DPP2P22K-F
ActiveCornell Dubilier Knowles
CAP FILM 0.22UF 10% 250VDC RAD
Description
General part information
DPP2P22K-F
0.22 µF Film Capacitor 140V 250V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | DPP2P22K-F |
|---|---|
| Applications | Switching, High Frequency |
| Capacitance | 0.22 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Features | Low ESR |
| Height - Seated (Max) | 1.063 in |
| Lead Spacing | 0.787 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.024 in |
| Size / Dimension Width | 0.551 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 140 V |
| Voltage Rating - DC | 250 VDC |
