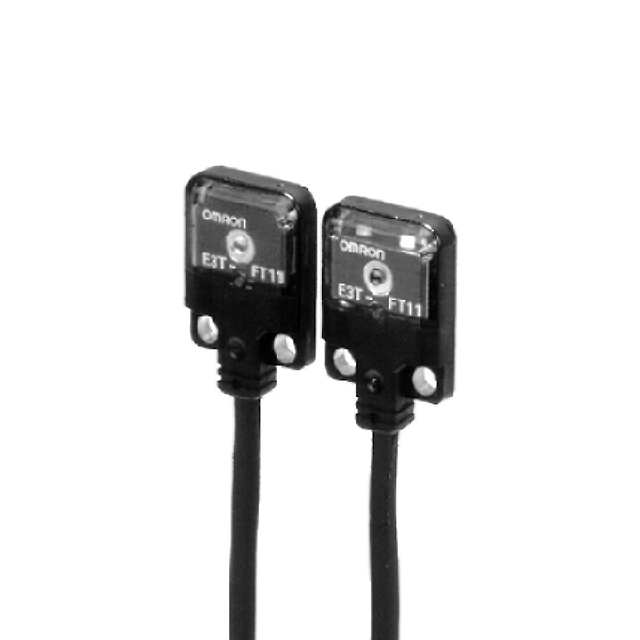

E3T-FT12
ActiveOmron Automation and Safety
SENSOR THROUGH-BEAM 500MM NPN
E3T-FT12
ActiveOmron Automation and Safety
SENSOR THROUGH-BEAM 500MM NPN
Description
General part information
E3T-FT12
Through-Beam Optical Sensor 19.685" (500mm) NPN - Open Collector/Dark-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | E3T-FT12 |
|---|---|
| Connection Method | Cable |
| Ingress Protection | IEC, IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 650 nm |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NPN - Open Collector, Dark-ON |
| Response Time | 1 ms |
| Sensing Distance | 19.685 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
