RG55-QM-TFBH(QTY:3m)
ActiveMcGill Microwave Systems
RG55 ASSY QMA MALE-TNC FEMALE BH
RG55-QM-TFBH(QTY:3m)
ActiveMcGill Microwave Systems
RG55 ASSY QMA MALE-TNC FEMALE BH
Description
General part information
RG55-QM-TFBH(QTY:3m)

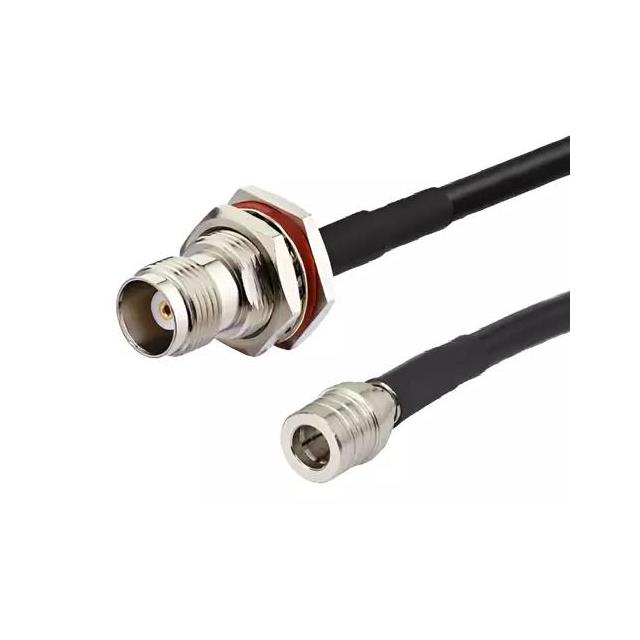

Cable Assembly Coaxial QMA to TNC RG-55 119.0" (3.0m) 9.9'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG55-QM-TFBH(QTY:3m) |
|---|---|
| 1st Connector | QMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 55 |
| Length | 119 in |
| Style | QMA, TNC |
